Description

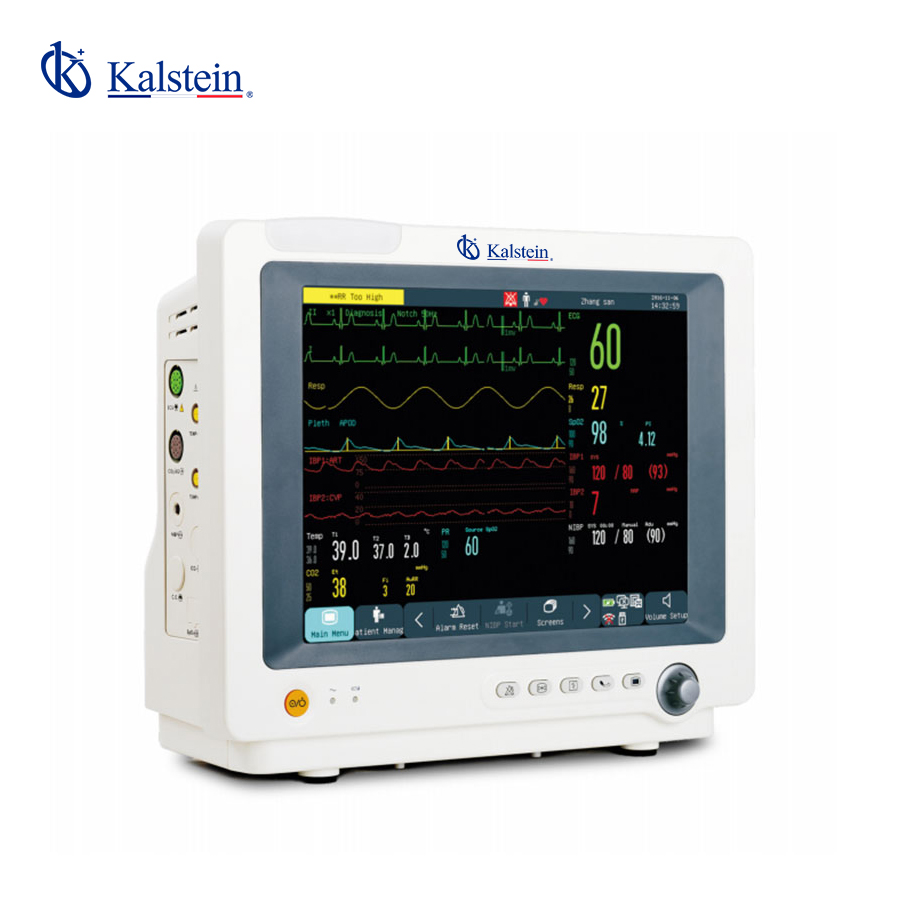

The Bedside Monitor YR02173 is an advanced patient monitoring unit equipped with a 12.1-inch touch screen that ensures precise and customizable monitoring solutions for healthcare settings. This innovative device integrates a comprehensive range of functionalities including 5-lead ECG, RESP, temperature measurement, and COMEN SpO2, making it indispensable for medical professionals seeking versatility and reliability. It seamlessly accommodates additional modules such as Dual-IBP, EtCO2, and different SpO2 configurations to meet diverse patient care needs.
Market Price Range
When considering premium bedside monitors, prices can vary dramatically depending on the features and brand prestige. The Bedside Monitor YR02173, with its remarkable features and robust design, represents a significant yet worthwhile investment for any medical institution. Despite the upfront cost, its advanced capabilities ensure long-term benefits in patient care efficiency. For tailored pricing solutions that align with your budget, leverage the quote request service available at Kalstein Plus and take the next step towards enhancing your facility’s medical technology.
Frequently Asked Questions
What is the display size of the Bedside Monitor YR02173? The monitor features a 12.1-inch touch screen.
Is the device portable? Yes, the monitor can be mounted on a trolley or a wall, offering flexibility across various clinical settings.
Does it support advanced monitoring modules? Yes, it does. It supports a variety of modules including Dual-IBP, EtCO2, AG, ICG, and others.
Advantages and Disadvantages
The Bedside Monitor YR02173 delivers significant advantages such as accurate patient monitoring, adaptability to various settings, and an easy-to-use interface. However, an important consideration is the integration of compatible modules and accessories, which might involve extra costs and setup time.
Usage in the Field
This monitor is particularly beneficial in intensive care units where thorough and continuous monitoring is vital. Its capacity to support multiple monitoring channels and versatile mounting options renders it suitable for both large hospital environments and smaller clinical facilities. By providing real-time crucial information, it facilitates immediate and effective patient interventions.
Recommendations
For optimum functionality, ensure regular software updates and routine maintenance checks of the device. When adding new modules, consulting technical support can help guarantee correct installation and operation. Conducting regular staff training sessions can further enhance the efficient utilization of the monitor.
Features
– 12.1-inch touch screen
– 5-lead ECG, RESP, Single Channel Temp, COMEN SpO2, NIBP, HR
– Support for Dual-IBP, EtCO2, AG, ICG, C.O., BIS
– Optional Nellcor/Masimo SpO2, 3/12-lead ECG, Thermal Recorder
– Dual-Temp, Suntech NIBP, Trolley, Wall mount options
Technical Specifications
| Model | YR02173 | |
|
ECG
|
Lead mode | 5 Leads(RA,LA,LL,RL,V) |
| Connection method | I, II, III,AVR,AVL,AVF,V | |
| Lead Mode | 3 Leads (RA,LA,LL) | |
| Connection method | I, II,III | |
| Waveform | 1ch | |
| Gain | 1.25, 2.5, 5.0, 10, 20, 40mm/mV, Auto. | |
| HR Range | Adult: 15~300bpm | |
| Neo/Ped | 15~350bpm | |
| Accuracy | ±1% or ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200(uVp-p) | |
| Differential input impedance | ≥5MΩ | |
| ST segment Monitoring Range | ||
| Measure Range | -2.0~+2.0mV | |
| Measure Accuracy | -0.8mV~+0.8mV | |
|
Heart Rate
|
Measuring range | 15~300bpm |
| Accuracy | ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200UVp-p | |
|
Respiration
|
Method | Impedance between R-F(RA-LL) |
| Differential Input Impedance | >2.5MΩ | |
| Measuring Impedance Range | 0.3~3.0 MΩ | |
| Base line Impedance Range | 200~4000Ω | |
| Bandwidth | 0.1~2.5Hz | |
| Resp. Rate | Adult: 2~120BrPM | |
| Neo/Ped | 0~150BrPM | |
| Resolution | 1 BrPM | |
| Accuracy | ±2 BrPM | |
| Alarm | 10~40S | |
|
NIBP
|
Method | Oscillometric |
| Mode | Manual/Auto/STAT | |
| Measuring Interval in AUTO Mode | 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min) | |
| Measuring Period in STAT Mode | 5 Min | |
| Pulse Rate Range | 40~240bpm | |
| Alarm Type | SYS, DIA, MEAN | |
| Resolution | ||
| Pressure | 1mmHg | |
| Accuracy | Maximum Mean error: 5mmHg | |
| Maximum Standard deviation | 8mmHg | |
|
SPO2
|
Display | Number of SPO2,waveform of capacity,Pulse |
| Measuring range | 0~100% | |
| Resolution | 1% | |
| Accuracy | 60~100% (±2%) | |
| Alarm system | Audio-video alarm | |
| Pulse rate range | 0~300bpm | |
|
TEMP
|
Channel | 2 |
| Measuring and Alarm Range | 0~50ºC | |
| Resolution | 0.1ºC | |
| Accuracy | 0.1ºC | |
| Actualization interval | About 1 Second. | |
| Average Time Constant | <10 Second. | |
