Description

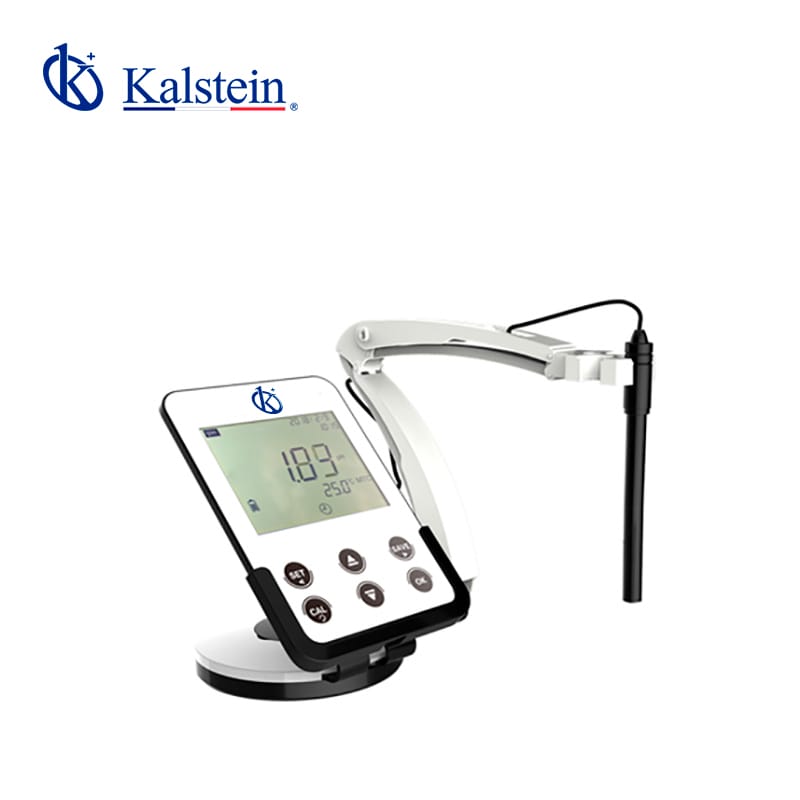

The Benchtop pH / Ion Meter YR01826 is a state-of-the-art instrument engineered for precise measurement of pH and ions. Its impressive 5-inch LCD screen offers a panoramic 150° viewing angle, ensuring visibility from up to 5 meters away. This meter incorporates a sophisticated microprocessor chip that enables intelligent functionalities such as automatic calibration, temperature compensation, and data storage. Ideal for laboratories and fieldwork, it boasts dual USB interfaces for seamless PC connectivity, battery charging, and data transfer. With the capability to automatically recognize 15 buffer solutions from Europe, USA, NIST, and China, it simplifies 1, 2, or 3-point calibration procedures. Furthermore, its rechargeable battery supplies up to 30 hours of continuous power, guaranteeing dependable performance even in rigorous conditions.
Market Price
The pricing for the Benchtop pH / Ion Meter YR01826 varies based on the supplier and additional features selected, positioning it as a competitive choice for professionals in search of a reliable and multifunctional pH meter without surpassing budget constraints.
Frequently Asked Questions
How accurate is the Benchtop pH / Ion Meter YR01826?
The device provides high precision with an accuracy of ±0.02 pH and features a temperature compensation range between 0 and 100°C, available in both automatic and manual modes.
Can it store measurement data?
Absolutely, it can store up to 200 sets of data, which include readings, GLP data, as well as the date and time.
Advantages and Disadvantages
One significant advantage of the YR01826 is its multifunctionality, combining the capabilities of a pH meter, temperature probe, and ion measurement in a single device. It offers ease-of-use with its automatic calibration and data storage features. However, due to its advanced functions, it may present a learning curve for beginners unfamiliar with sophisticated measurement devices.
Field Usage
The YR01826 is well-suited for laboratory and field applications that require portable measurement solutions. Its robust performance and IP54 protection grade allows for reliable data acquisition in varied temperature and humidity levels, making it ideal for challenging environments.
Recommendations
For optimal performance, it is advised to regularly calibrate the Benchtop pH / Ion Meter YR01826 and ensure the battery is charged for uninterrupted operation. Utilizing the full spectrum of calibration points will maximize accuracy. For more detailed insights and to obtain an automatic quote, visit the Kalstein Plus platform.
Features
- 5-inch LCD screen with 150° viewing angle
- Automatic calibration and temperature compensation
- Data storage capacity of up to 200 sets
- Dual USB interfaces for connectivity and data transfer
- Rechargeable battery with up to 30 hours of power
Technical Specifications
| Model | YR01826 | |
| pH | Measuring range | (-2~19.999)pH |
| Resolution | 0.1/0.01pH | |
| Accuracy | ±0.02 pH | |
| Input current | ≤2×10^-12 A | |
| Input impedance | 21×10^-12 Ω | |
| Stability | ±0.002 pH/3h | |
| Temp. compensation range | (0~100) °C, auto/manual | |
| mV | Measuring range | -1999.9mV~0~1999.9mV |
| Resolution | 0.1mV | |
| Accuracy | ±0.03% FS | |
| Temperature | Measuring range | (-10~110) C |
| Resolution | 0.1°C | |
| Accuracy | 5~ 60°C: range: ±0.4°C; other range: ±0.8℃ | |
| Calibration | 1, 2, 3 point | |
| Other Technical Parameters | Display | 5-Inch white backlit LCD screen |
| Data storage | 200 sets | |
| Power | DC 5V/1A | |
| Communication connector | Micro USB & Standard USB | |
| Dimension/N.W. | 180 x 130 x 14mm/280g | |
| Working Condition | Environment Temp. | 535 °C |
| Environmental | ≤85% | |
| IP Grade | IP54 | |
| Meter Kits | 1) pH meter | |
| 2) Electrode holder | ||
| 3) Two-in-one electrode that consists of pH combination electrode and temperature probe. | ||
| 4) pH buffer solution | ||
| 5) Power adapter | ||
