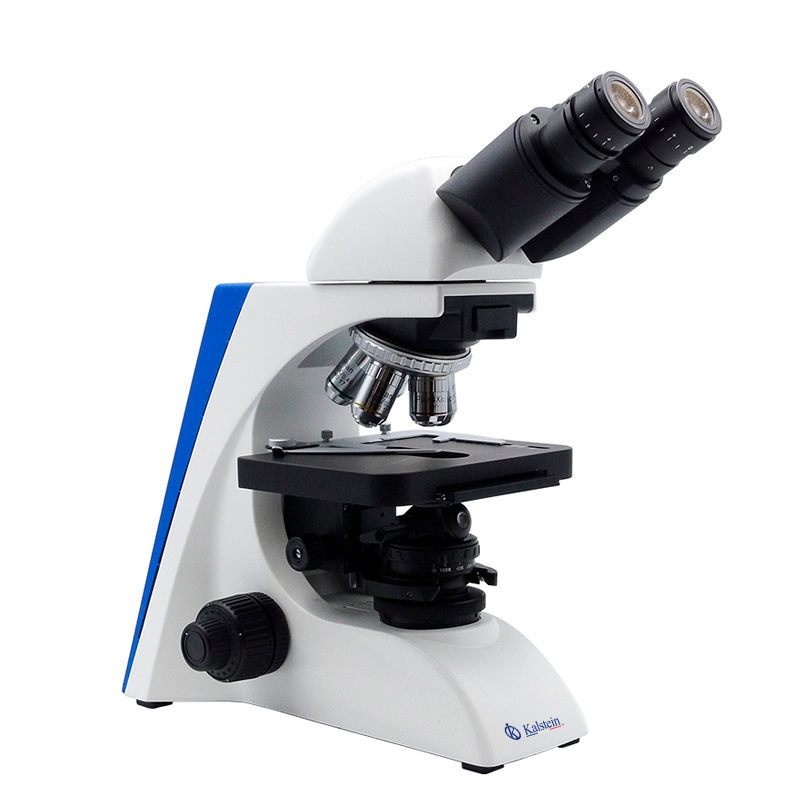

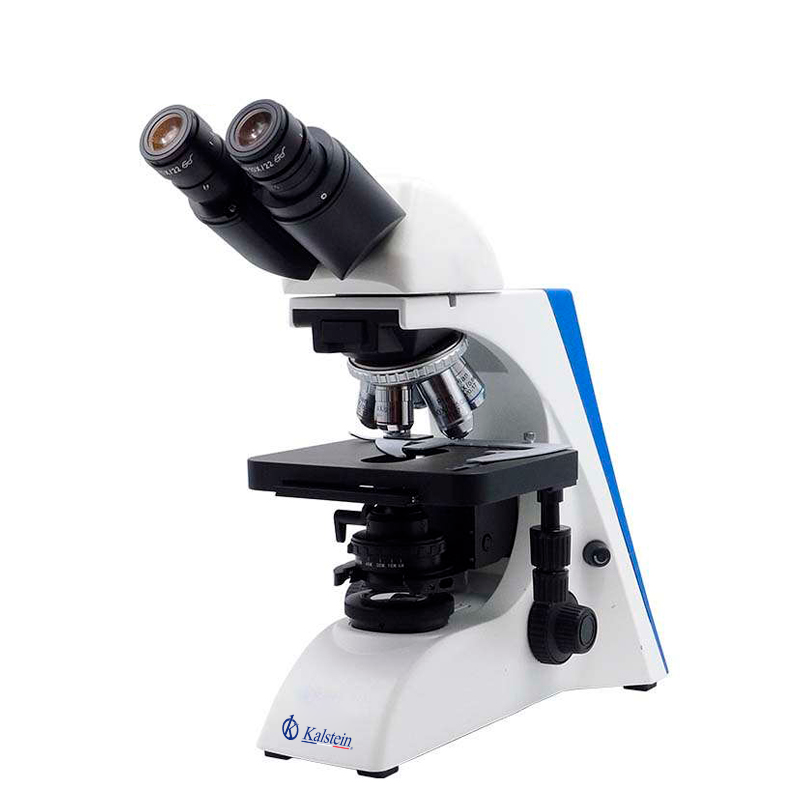

Binocular Biological Laboratory Microscope YR05789 - YR05790

Description

The Binocular Biological Laboratory Microscope YR05789 – YR05790 is a state-of-the-art scientific instrument designed for superior viewing precision and clarity. Its upgraded large Seidentopf binocular head, inclined at 30° and rotatable 360°, provides versatile observation capabilities, ensuring comfort and adaptability. With a diopter adjustable eyepiece diameter of 30mm, it guarantees a tailored viewing experience. The microscope offers infinity plan objectives with magnifications of 4x, 10x, 20x, 40x, and an impressive 100x, along with an innovative water objective option. Featuring a rackless mechanical stage, a 6V30W high brightness light source with a blue filter, and an Abbe condenser N.A.1.25, the Binocular Biological Laboratory Microscope is ideal for routine laboratory tasks and advanced research applications. Invest in this extraordinary device today and enhance your research capabilities through our Kalstein Plus platform.

Market Price

High-quality laboratory microscopes like the Binocular Biological Laboratory Microscope YR05789 – YR05790 generally price within a competitive range. Investing in this device ensures advanced functionality and unparalleled research enhancement. For a detailed quote and information on potential discounts, visit our Kalstein Plus platform to request a quote now.

Frequently Asked Questions

Q: Can the microscope be used for educational purposes? A: Absolutely, this microscope is perfect for both educational and professional laboratory settings.

Q: How does the light source upgrade benefit observations? A: The 6V30W high brightness light source, paired with a blue filter, enhances illumination for sharper and more precise observations.

Q: Is the microscope compatible with camera attachments? A: Yes, it includes a port for digital camera adapters to facilitate convenient image and video capture.

Advantages and Disadvantages

Advantages: Offers precise, high-quality optical performance and comfort with its ergonomically inclined binocular head, providing flexibility with multiple magnification options.

Disadvantages: Requires careful handling to maintain its precision and functionality.

Product Use in the Field

This microscope finds extensive application across various fields such as biological research, medical diagnostics, and educational laboratories. Its sturdy design and advanced features allow for the meticulous examination of cells and microorganisms, making it indispensable for laboratory technologists and researchers.

Recommendations

To extend the longevity and optimize the performance of your microscope, make sure to regularly clean the lenses and mechanical parts after each use. Store it in a dust-free environment and adhere to the manufacturer’s maintenance guidelines. Consider purchasing additional accessories like camera adapters for enhanced documentation of your observations.

Features

Large Seidentopf binocular head, 30° inclined, 360° rotatable
Diopter adjustable eyepiece with a 30mm diameter
Infinity Plan objectives with multiple magnification levels
Powerful 6V30W halogen light source with a blue filter
Rackless mechanical stage for seamless maneuverability

Technical Specifications

Model		YR05789	YR05790	Cata. No.
Upgrade	–Head Upgrade To Large Size With Eyepiece Tube Dia.30mm
	–Eyepiece Upgrade To Dia.30mm Diopter Adjustable
	–Standard Objectives Upgrade To 5 pcs With 20x
	–Working Stage Upgrade To Large Size Rackless 182x140mm
	–Condenser Abbe N.A.1.25 Upgrade To Swing Out Condenser N.A.0.9/0.13
	–Light Source Upgrade to 6V30W High Brightness + Blue Filter
Head	Seidentopf Binocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-76mm,	●	○	YR05789-op1
	Eyepiece Tube Dia.30mm	●	○	YR05789-op1

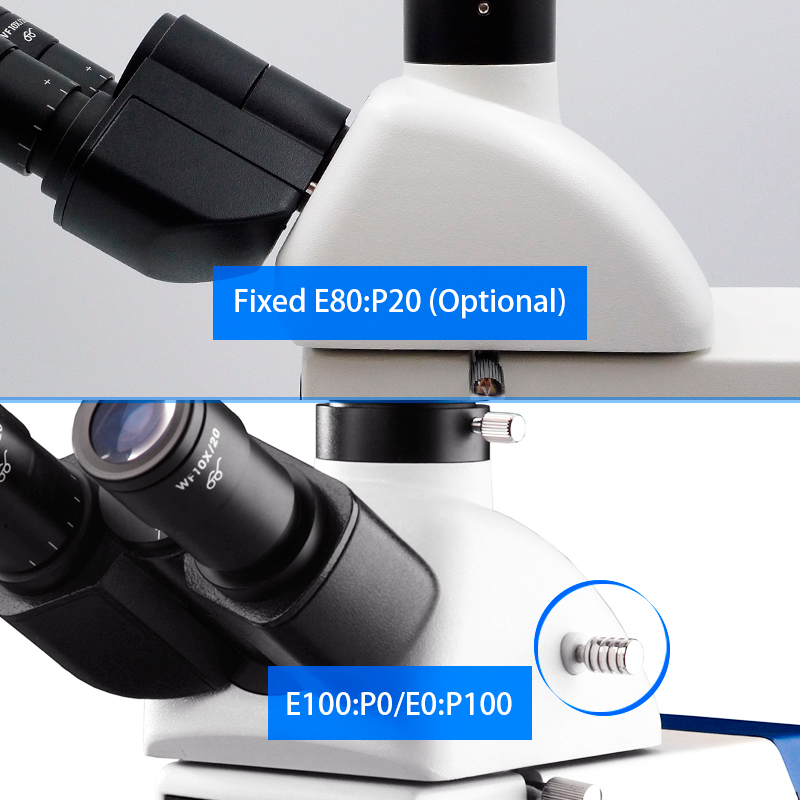

	Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-76mm, Light Split Switch E100:P0/E20:P80,	○	●	YR05789-op2
	Eyepiece Tube Dia.30mm	○	●	YR05789-op2

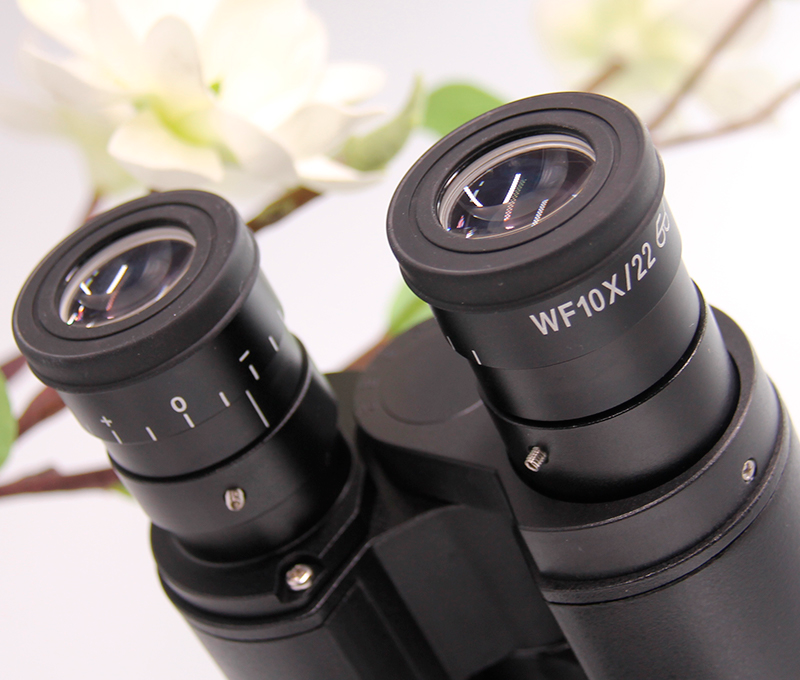

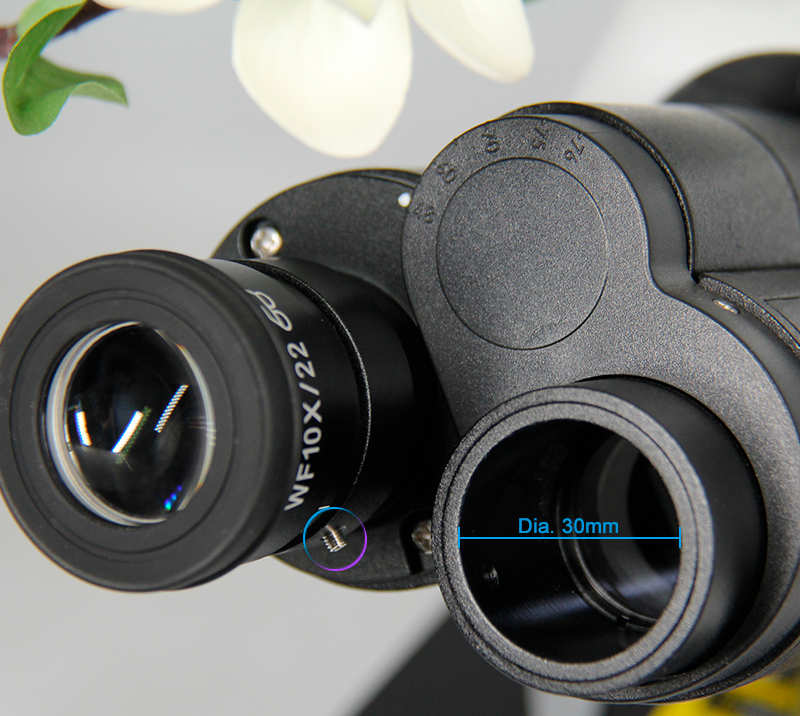

Eyepiece	WF10x/22mm,Dia.30mm, High Eyepoint, Diopter Adjustable	●●	●●	YR05789-op3
Nosepiece	Quintuple	●	●	YR05789-op4

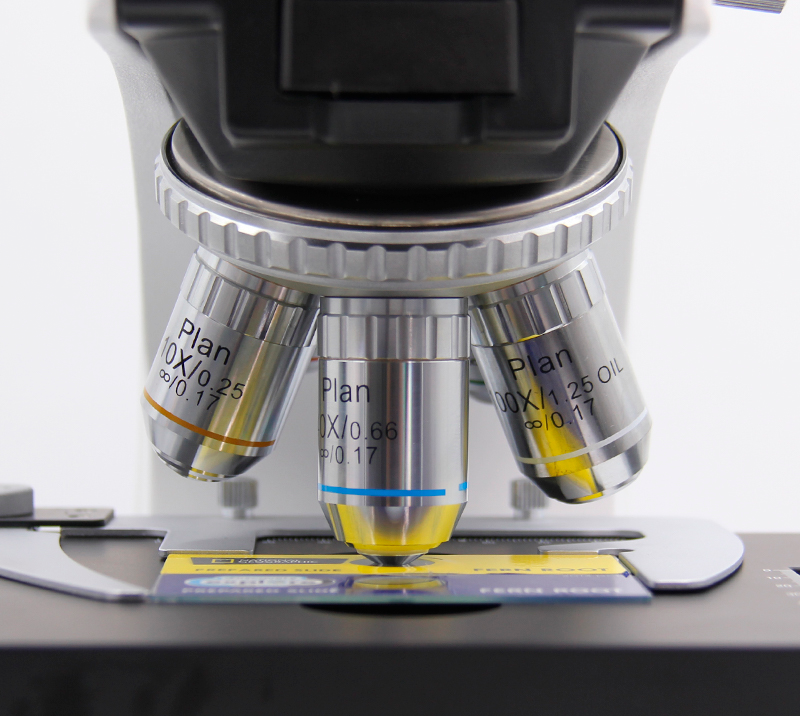

Infinity Plan Objective	PLAN 2.5X/0.07,W.D.=8.47mm	○	○	YR05789-op5
	PLAN 4X/0.10,W.D.=12.10mm	●	●	YR05789-op6
	PLAN 10X/0.25,,W.D.=4.64mm	●	●	YR05789-op7
	PLAN 20X/0.40(S),W.D.=2.41mm	●	●	YR05789-op8
	PLAN 40X/0.66(S),W.D.=0.65mm	●	●	YR05789-op9
	PLAN 60X/0.80(S),W.D.=0.33mm	○	○	YR05789-op10
	PLAN 100X/1.25(S,Oil),W.D.=0.12mm	●	●	YR05789-op11
	PLAN 100X/1.15(S,Water),W.D.=0.19mm	○	○	YR05789-op12

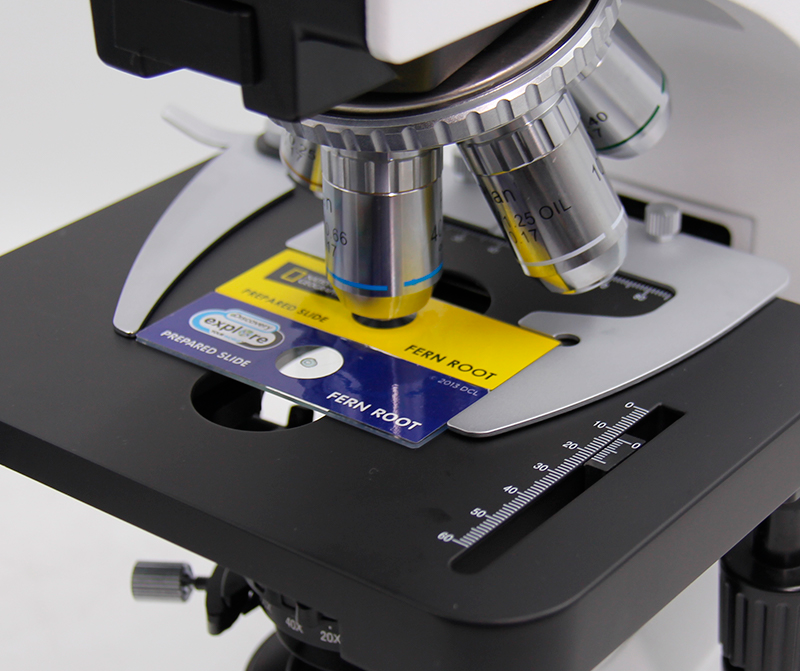

Working Stage	Rackless (Integrated) Mechanical Stage, Size 182×140mm, Travel Range 77×52mm, Double Slide Holder	●	●	YR05789-op13
Working Stage	Mechanical Stage Size 175 mm×145mm, Travel 76mmX52mm, Scale: 0.1mm, Double Slide Holder	○	○	YR05789-op14
Focusing	Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 22mm, Fine Focusing Div. 0.002mm	●	●	YR05789-op15

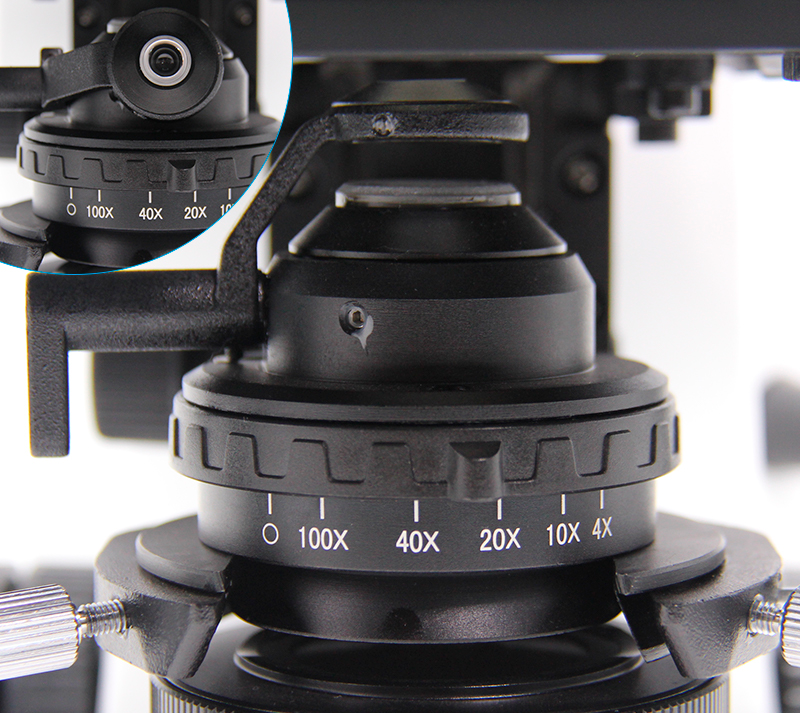

Condenser	Swing-out Condenser,N.A.0.9/0.13,Iris Diaphragm	●	●	YR05789-op16
Illumination	6V30W Halogen Koehler Illumination, With Field Diaphragm	●	●	YR05789-op17
	Power Supply Wide Voltage 100V~240V	●	●	YR05789-op17
	3W LED Koehler Illumination, Field Diaphragm	○	○	YR05789-op18

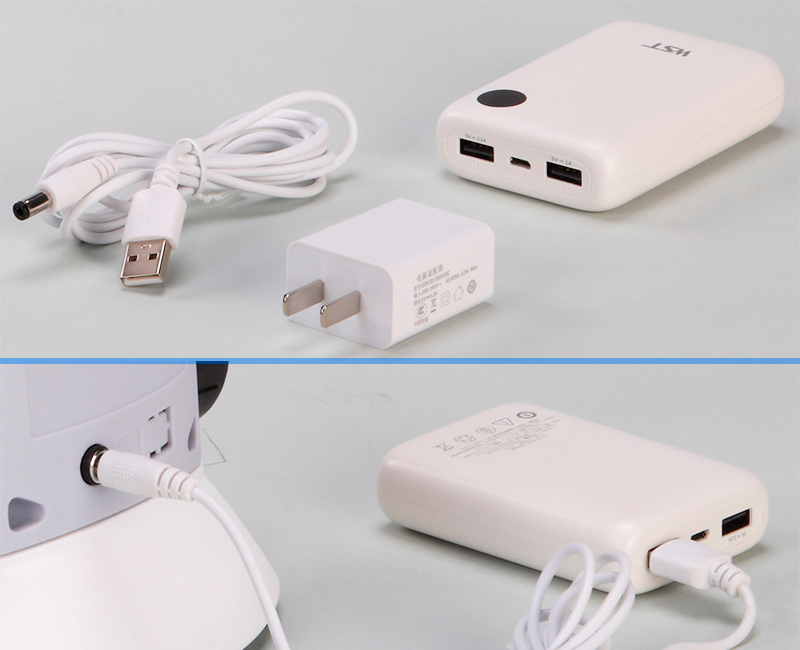

	Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use	○	○	YR05789-op18
Field Diaphragm	For Kohler Illumnation	●	●	YR05789-op19
Power	ECO, Auto Power Off System.	○	○	YR05789-op20
	Power Off Automatically Upon User Leaving 10 Minutes,
	Power On Automatically Upon User Approaching Detected,
	This Function Can Be Shut Down Manually
Filter	Dia.45mm, Blue	●	●	YR05789-op21
	Dia.45mm, Green	○	○	YR05789-op22
	Dia.45mm, Yellow	○	○	YR05789-op23
Dark Field	Dark Field Condenser, Dry, N.A.0.83-0.91, For 4x10x40x Objective	○	○	YR05789-op24
Dark Field	Dark Field Condenser, Immersion, N.A.1.3, For 100x Objective			YR05789-op25
Polarizing	Analyzer + Polarizer Set	○	○	YR05789-op26
Phase Contrast	Infinity Plan Phase Contrast Objective 10x + Phase Contrast Slide 10x + Phase Contrast Condenser + Telescope 11x + Green Filter	○	○	YR05789-op27
	Infinity Plan Phase Contrast Objective 20x + Phase Contrast Slide 20x + Phase Contrast Condenser + Telescope 11x + Green Filter	○	○	YR05789-op28
	Infinity Plan Phase Contrast Objective 40x + Phase Contrast Slide 40x + Phase Contrast Condenser + Telescope 11x + Green Filter	○	○	YR05789-op29
	Infinity Plan Phase Contrast Objective 100x + Phase Contrast Slide 100x + Phase Contrast Condenser + Telescope 11x + Green Filter	○	○	YR05789-op30
	Turret Phase Contrast Attachment	○	○	YR05789-op31
Fluorescence	Upgrade to A16.2604-T2 Fluorescence Microscope With A5F.2601-2: B,G China Fluorescent Set 100W Mercury Lamp House 100W Mercury Power Box, Digital Disp. 6 Holes Disc Fluorescent Unit Ultraviolet Protection Barrier Centering Objective China 100W Mercury Lamp 2 pcs		○	YR05789-op32
	Upgrade to A16.2604-T4 Fluorescence Microscope With A5F.2601-4: B,G,U,UV China Fluorescent Set 100W Mercury Lamp House 100W Mercury Power Box, Digital Disp. 6 Holes Disc Fluorescent Unit Ultraviolet Protection Barrier Centering Objective China 100W Mercury Lamp 2 pcs		○	YR05789-op33
	Upgrade to A16.2604-LT2 Fluorescence Microscope With A5F.2602-2: B,G China Fluorescent Set 6 Holes Disc Fluorescent Unit 5W LED Lamp House 5W LED Power Box Ultraviolet Protection Barrier		○	YR05789-op34
	Upgrade to A16.2604-LT4 Fluorescence Microscope With A5F.2602-4: B,G,U,UV China Fluorescent Set 6 Holes Disc Fluorescent Unit 5W LED Lamp House 5W LED Power Box Ultraviolet Protection Barrier		○	YR05789-op35
Adapter	C-Mount 0.5x, Focus Adjustable	○	○	YR05789-op36
	C-Mount 0.75x, Focus Adjustable	○	○	YR05789-op37
	C-Mount 1.0x, Focus Adjustable	○	○	YR05789-op38
	Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mm	○	○	YR05789-op39
Package	Carton Size 520×475×285mm, 1 Unit/Ctn
Weight	Gross Weight: 12 kgs, Net Weight: 10 kgs

Additional information

Weight	11 kg
Dimensions	52 × 47 × 28,5 cm
Model	YR05789, YR05790
