Description

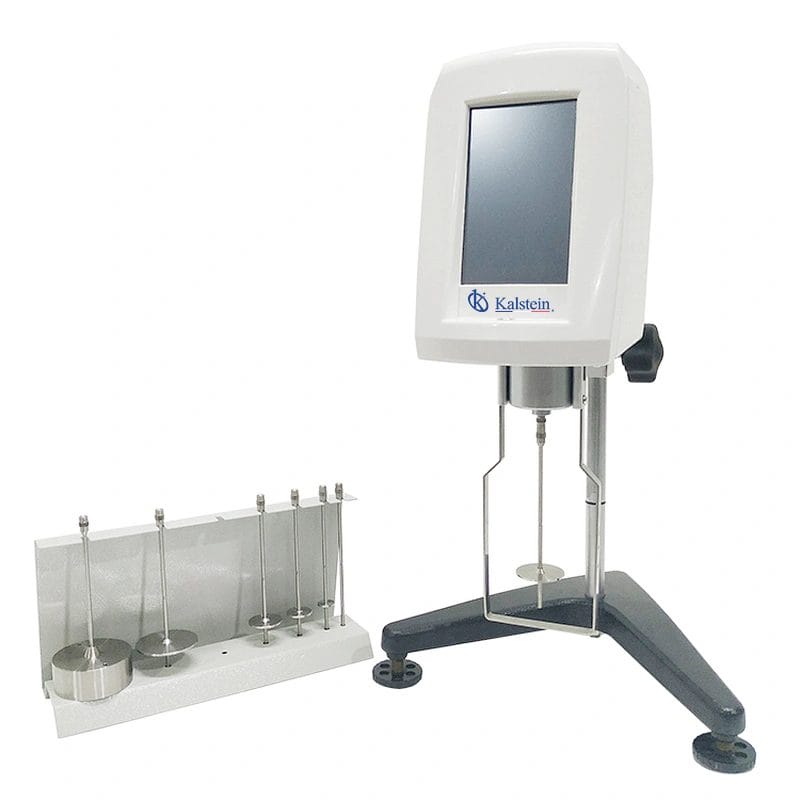

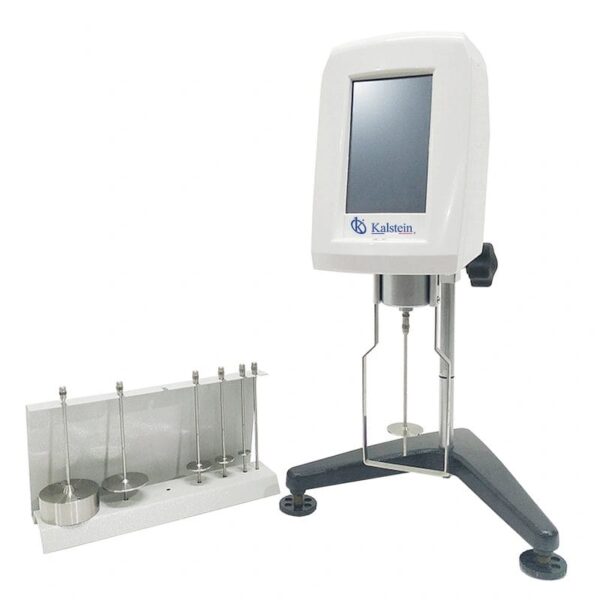

The Brookfield Viscosity Tester YR05860 // YR05864 harnesses cutting-edge technology to deliver swift and precise viscosity measurements with unparalleled convenience. Featuring a 5-inch color touch screen, it provides a clear visualization of a wide range of parameters and working conditions, making it indispensable in industries such as paint, cosmetics, and food production. Its superior stability, high precision, and effective anti-interference capabilities ensure reliable performance in demanding applications.
Market Price
The Brookfield Viscosity Tester is positioned within a mid to high-end price range for viscosity measurement devices. This reflects the advanced technology and precision it offers, ensuring a worthwhile investment for achieving operational excellence.
Frequently Asked Questions
- What is the display size of the Brookfield Viscosity Tester? The device features a 5-inch color touch screen display.
- What is the test range of the device? It can measure a substantial viscosity range from 100 to 320 million mPa.s, depending on the model.
- Is the device suitable for use with high-viscosity liquids? Yes, it is specifically designed to handle high-viscosity materials effectively.
Advantages and Disadvantages
The Brookfield Viscosity Tester is renowned for its precision and ease of use. Its ability to provide accurate measurements, combined with comprehensive test parameter visualization, facilitates intuitive readings. However, initial setup and calibration complexities may pose a challenge for new users, though proper training can easily mitigate this issue.
Product Usage in the Field
This viscosity tester is essential in practical applications, adeptly measuring the viscosity of materials such as paints, inks, and food products. Its capabilities extend to creating viscosity profiles, enhancing quality control, and ensuring product consistency throughout manufacturing processes.
Recommendations
To maintain optimal performance, regular calibration and cleanliness of contact parts are crucial. Utilizing the optional Pt100 temperature probe can significantly boost measurement accuracy, especially for temperature-sensitive samples. Take advantage of our Kalstein Plus platform to automatically generate a quote or request one today.
Features
- Advanced ARM technology with an integrated Linux system.
- Automatic calibration for enhanced accuracy across a range of measurements.
- Rich display options, including temperature and shear rate.
- Support for creating and storing up to 30 groups of test programs and data.
- Optional temperature and rotor accessories for specialized applications.
- Broad applicability across industries dealing with high-viscosity materials like paints and cosmetics.
Technical Specifications
| Model | YR05860 | YR05861 | YR05862 | YR05863 | YR05863-1 | YR05864 |
| Display | 5-inch color touch screen | |||||
| Test range (mPa.s) | 100-13,000,000 | 200-26,000,000 | 800-104,000,000 | 100-40,000,000 | 200-80,000,000 | 800-320,000,000 |
| Speed (r/min) | 0.3–100 infinitely variable speed, a total of 998 speed options |
0.1–200 infinitely variable speed, a total of 2000 speed options | ||||
| Rotor | R2 – R7(6 rotors, Standard), ULR(Optional for low viscosity material) | |||||
| Sample volume | 500 ml | |||||
| Test error | ±1% (Newtonian liquid) | |||||
| Repetitive error | ±0.5% (Newtonian liquid) | |||||
| Interface | Two RS232 interface | |||||
| Power | Wide voltage work (110V / 60Hz or 220V / 50Hz) | |||||
| Packing | 580*350*350mm & 440*380*450mm | |||||
| Function | Show shear response / shear rate; Timing function Show curve: Time-viscosity curve Show curve: Temperature-viscosity curve(should optional temperature probe) Show curve: shear rate and viscosity curves(should optional PC software) kinematic viscosity: Density of samples to be entered Automatic display of the selected combination of rotors and rotational speeds in a measurable range of viscosity Self-built Measuring Procedures: Save 30 groups (including rotor, speed, temperature, time, etc.) Preservation of measurements: Save 30 sets of data (including viscosity, temperature, rotor, speed, shear rate, shear stress,time, density, kinematic viscosity, etc.) |
|||||
