Desktop Ultrasonic Cleaner YR05220 // YR05228

Manufacturer: Kalstein

Description

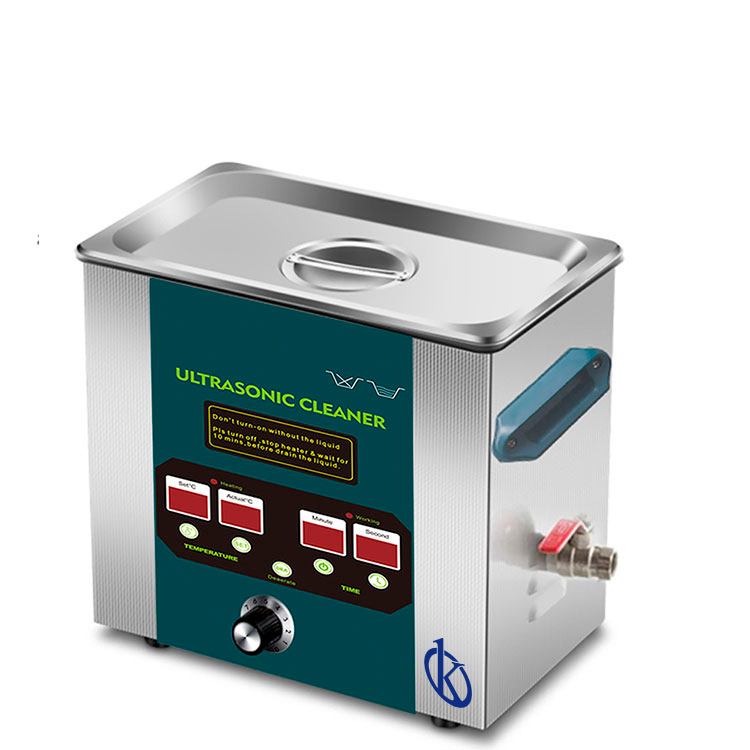

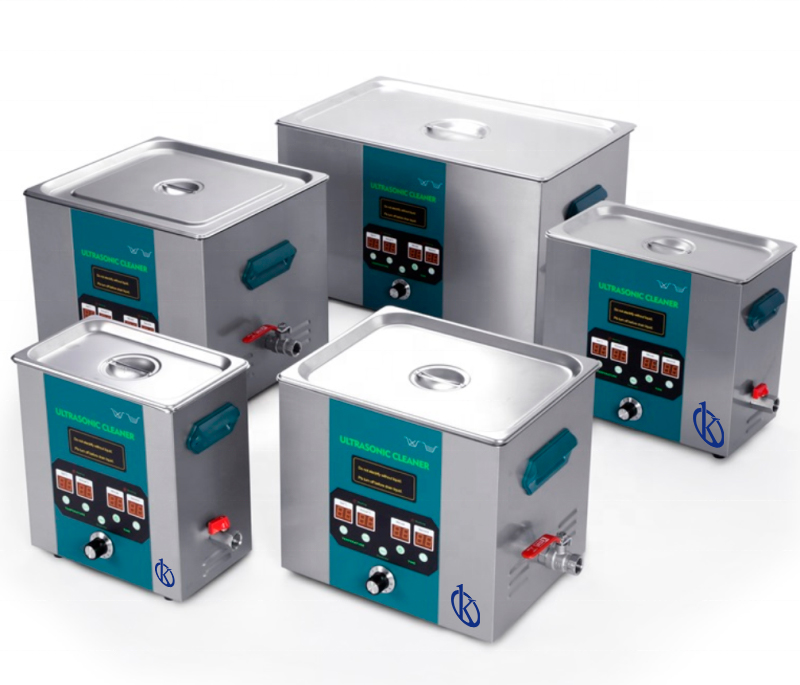

The Desktop Ultrasonic Cleaner YR05220 // YR05228 is a remarkable cleaning solution known for its exceptional capacity and efficiency in ultrasonic cleaning. With models available from 3.2 liters up to a substantial 30 liters, these cleaners are suitable for a wide array of cleaning tasks, from delicate medical instruments to robust industrial parts and fine jewelry. Each unit is equipped with high-Q industrial transducers, ensuring superior energy conversion efficiency and enhanced cleaning power. The inclusion of a degassing function along with precise temperature and time control features make this series an ideal choice for laboratories, mechanical workshops, and clinics seeking meticulous and damage-free cleaning solutions.

Market Price

The YR05220 // YR05228 series ultrasonic cleaners offer a competitive range in the market, balancing cost with functionality. These models cater to various budgetary needs without compromising on quality, making them an appealing choice for both individual technicians and large industrial facilities. By choosing the model that best fits their capacity requirements, users can find an efficient and cost-effective solution tailored to both compact and large-scale applications.

Frequently Asked Questions

  • What is the tank capacity of the YR05228 model, and what applications is it recommended for?
    The YR05228 offers a generous 30-liter capacity, perfect for cleaning large parts or multiple items simultaneously, making it a prime choice for industrial and high-demand environments.
  • Is it safe to use this cleaner for delicate medical instruments?
    Yes, the ultrasonic technology ensures deep cleaning without causing damage, making it suitable for medical, dental, and other sensitive equipment.

Advantages and Disadvantages

The series boasts several advantages such as impressive cleaning capacity, energy efficiency, and the capability to control both power and temperature settings up to 80°C. Additionally, models come with a drain valve for convenient handling of cleaning liquids post-use. The degassing function significantly enhances cleaning effectiveness by eliminating air bubbles. However, a notable disadvantage is that larger models, like the YR05228, might lack portability due to their size and weight.

Product Use in the Field

The YR05220 // YR05228 ultrasonic cleaners find extensive application in dental clinics for sterilizing instruments, in mechanical workshops for cleaning car parts, and in laboratories to maintain tools free of contaminants. Their ability to eliminate stubborn residues from hard-to-reach areas makes them indispensable in environments where precision cleaning is paramount.

Recommendations

For optimal performance, users are encouraged to employ specific ultrasonic cleaning solutions and regularly upkeep the tanks. If you are interested in purchasing any of these models, you are invited to request a quote or generate an automatic quote via Kalstein Plus, where the best options for your business or laboratory can be found.

Features

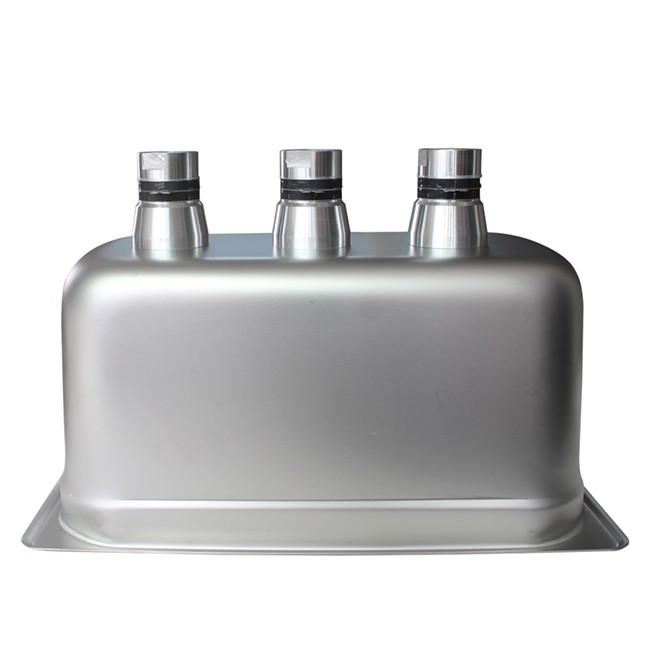

  • High-Q industrial transducers
  • Degassing function
  • Precise control of temperature and time
  • Power regulation
  • Drain valve for easy handling of cleaning liquids
  • Comprehensive capacity options from 3.2 liters to 30 liters
  • Durable construction suitable for various cleaning tasks

Technical Specifications

Models YR05220 YR05221 YR05222 YR05223
Capacity (L) 3.2 5 4.87 6.8
Working frequency 40 KHz 40 KHz 40 KHz 40 KHz
Ultrasonic Power 120 W 120 W 180 W 180 W
Degas Yes Yes Yes Yes
Heating power 100 W 200 W 200 W 200 W
Synchronization time (minutes) 0-99 0-99 0-99 0-99
Temperature range 0-80°C 0-80°C 0-80°C 0-80°C
Power Regulation 0-100% 0-100% 0-100% 0-100%
Cover Yes Yes Yes Yes
Drain Valve Yes Yes Yes Yes
Washing basket Optional Optional Optional Optional
Inner tank dimension (mm) 240 x 135 x 100 240 x 135 x 150 300 x 150 x 100 300 x 150 x 150
Packing size (mm) 342 x 240 x 355 342 x 240 x 355 402 x 252 x 355 412 x 357 x 380
Gross weight (kg) 6.7 7.2 7.5 6.21
Models YR05224 YR05225 YR05226 YR05227 YR05228
Capacity (L) 11 15 20 22 30
Working frequency 40 KHz 40 KHz 40 KHz 40 KHz 40 KHz
Ultrasonic Power 240 W 360 W 360 W 480 W 600 W
Degas Yes Yes Yes Yes Yes
Heating power 300 W 400 W / 220V 400 W / 220V 600 W / 220V 600 W / 220V
Synchronization time (minutes) 0-99 0-99 0-99 0-99 0-99
Temperature range 0-80°C 0-80°C 0-80°C 0-80°C 0-80°C
Power Regulation 0-100% 0-100% 0-100% 0-100% 0-100%
Cover Yes Yes Yes Yes Yes
Drain Valve Yes Yes Yes Yes Yes
Washing basket Optional Optional Optional Optional Optional
Inner tank dimension (mm) 300 x 240 x 150 330 x 300 x 150 330 x 300 x 200 500 x 300 x 150 500 x 300 x 200
Packing size (mm) 472 x 437 x 420 472 x 437 x 470 472 x 437 x 470 675 x 454 x 430 657 x 450 x 475
Gross weight (kg) 8.5 11.5 12.5 14.5 16

Additional information

Weight N/A
Dimensions N/A
Model

YR05220, YR05221, YR05222, YR05223, YR05224, YR05225, YR05226, YR05227, YR05228
