Description

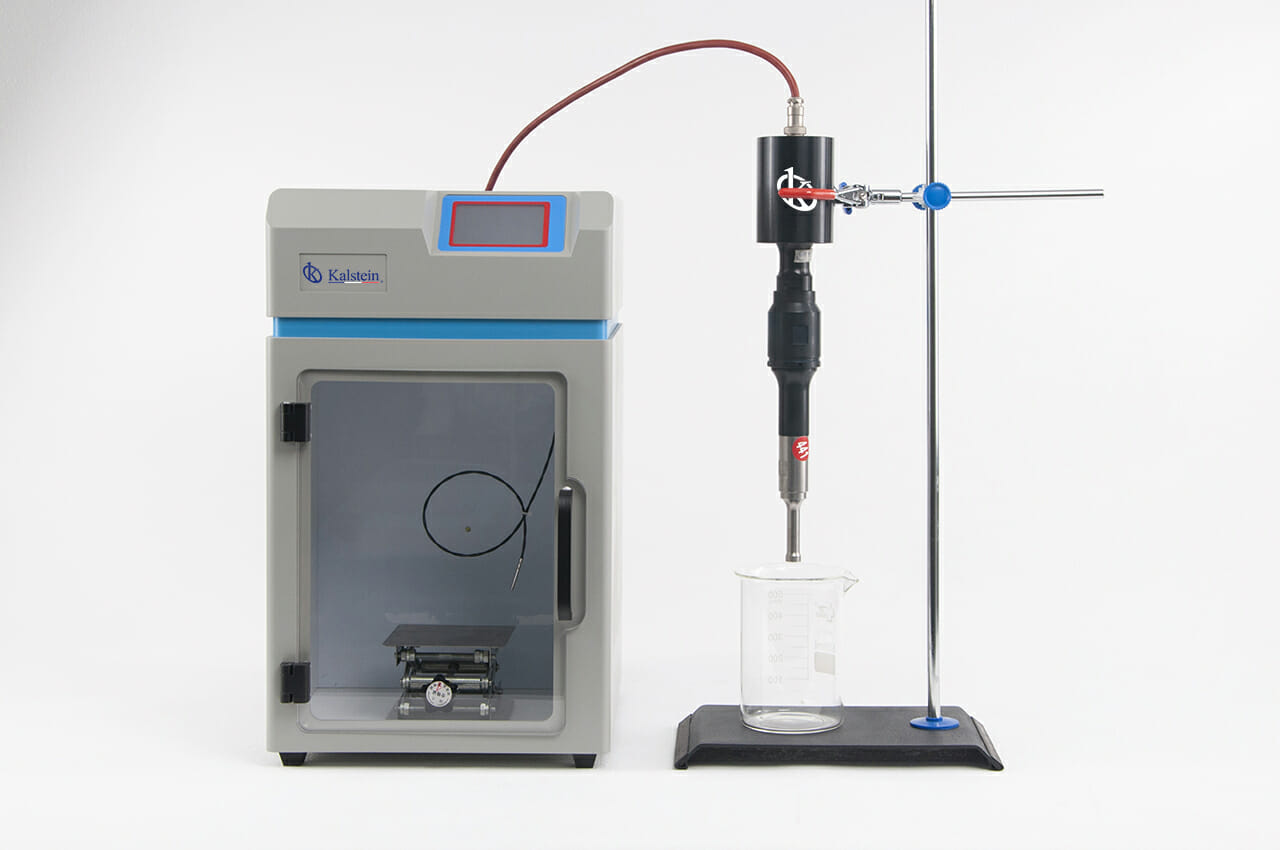

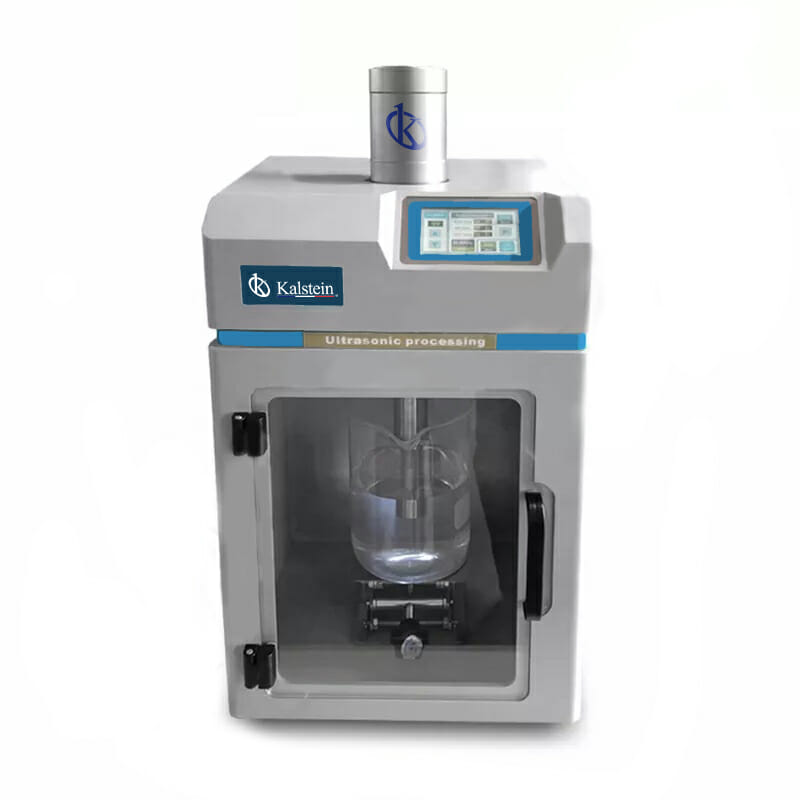

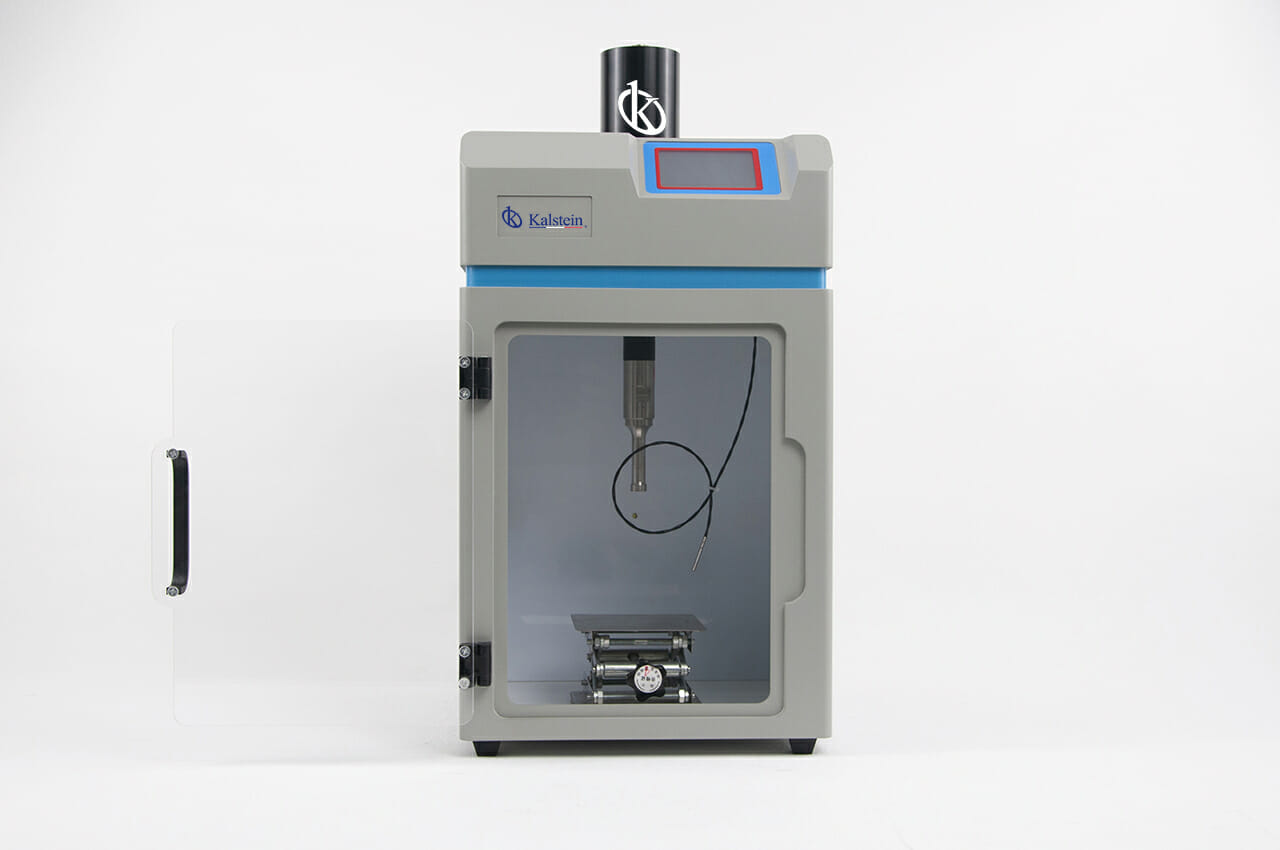

The Digital Intelligent Ultrasonic Homogenizer Processor Sonicator YR05837 // YR05839 is a cutting-edge laboratory instrument essential for those who require precision and efficiency in processing solid-liquid samples. Known for its advanced capabilities, such as cell lysis, emulsification, and nanoparticle dispersion, this ultrasonic processor also accelerates chemical reactions through its digital interface and automated controls. With the ability to adjust ultrasonic power from 0 to 100%, users can customize settings to meet specific sample needs. The 3.2-inch LCD touch screen and the capacity to store up to 8 data sets ensure seamless operation and meticulous monitoring.
Market Price
The price for the Intelligent Digital Sonicator YR05837 // YR05839 reflects its advanced technology and superior performance compared to other ultrasonic homogenizers available in the market. Depending on additional features like optional probes and cooling systems, the price may vary. We recommend visiting our Kalstein Plus platform to request or generate a quote automatically, facilitating a streamlined decision-making process.
Frequently Asked Questions
- What types of samples can this device process?
This sonicator is capable of processing a wide range of samples, including animal cells, plant cells, nanoparticles, emulsions, and soil samples.
- Is it safe for sensitive samples?
Yes, its precise power and temperature control ensure the protection of delicate samples from any thermal or mechanical damage.
Advantages and Disadvantages
The primary advantages of the YR05837 // YR05839 include its versatility, precision, and automated safety protocols. Compatibility with both continuous and pulse modes, coupled with automatic frequency compensation, guarantees consistent performance. However, some users may find the size limiting in space-constrained laboratories, although the soundproof box effectively reduces noise disturbances.
Field Use
This ultrasonic homogenizer proves indispensable across various fields, including biotechnology, materials chemistry, and medicine. For instance, it aids in DNA and protein extraction in molecular biology and facilitates the dispersion of carbon nanotubes in chemistry. Its ability to process volumes ranging from 50 ml to 3000 ml makes it a valuable asset for both research and industrial laboratories.
Recommendations
To maintain optimal performance and longevity, regular maintenance is recommended, including cleaning probes and checking the cooling system. For additional inquiries or purchase details, we encourage you to generate a quotation on the Kalstein Plus platform that suits your specific requirements.
Features
This device offers adjustable ultrasonic power, two operational modes (pulse and continuous), an informative touchscreen display, and robust titanium alloy probe material for reliable performance.
Technical Specifications
Model No. | YR05837 | YR05837-1 |
Working Frequency | 19~25KHz Automatic compensation | |
Ultrasonic Power | 950W | 650W |
Processing Capacity | 100~1200ml | 50~800ml |
Power adjustable | 0~100% | |
Timer | LCD Touch screen, adjustable from 1s to 99h | |
Pulser | Digital, closed loop, open loop, 1s to 99min to choose and set | |
Ultrasonic mode | Pulse mode / Continuous mode | |
Standard Probe | Φ13mm | Φ6mm |
Optional Probe | Φ3/6/8/10/16/18mm |
Φ3/6/8/13/16mm
|
Energy Converter | CV33, PZT lead zirconate titanate piezoelectric ceramics | |
Probe Material | Titanium Alloy TI-6AL-4V | |
Cabinet lighting | yes | |
Lifting table | yes | |
Machine size | 245*365*245mm | |
Sound Proof box size | 240*250*390mm | |
Power Supply | AC220/50Hz,110V/60Hz | |
Optional Configuration | Magnetic stirring, cooling water circulation system, etc; Computer Software package: RS422 to USB data connection limit (including driver), computer monitoring driver temperature sensor Wrench: used to install and remove the horn Test tube rack |
