Description

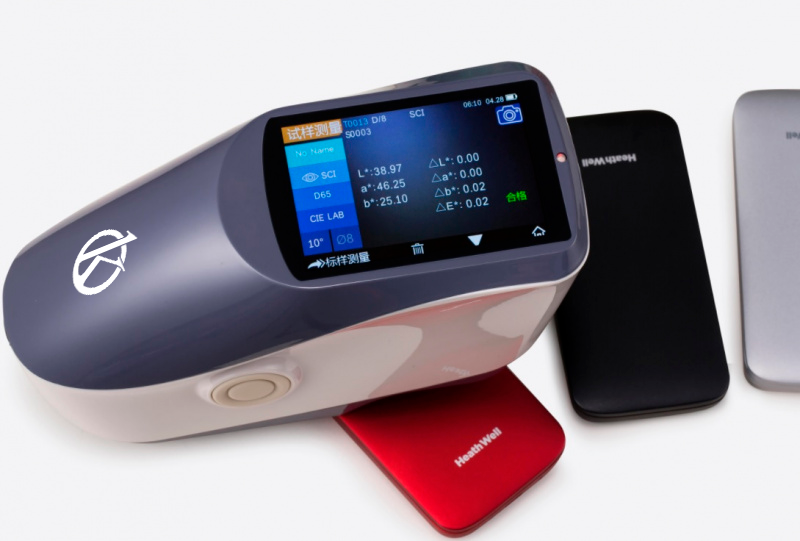

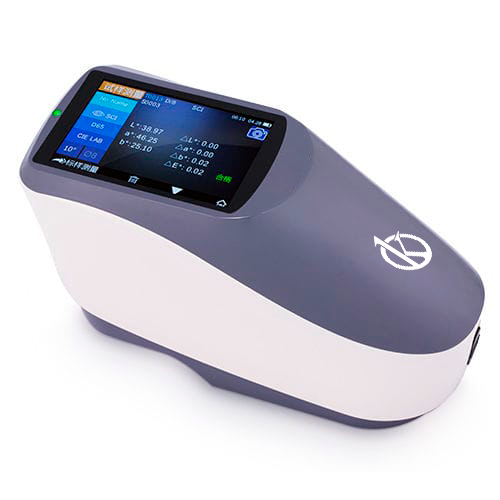

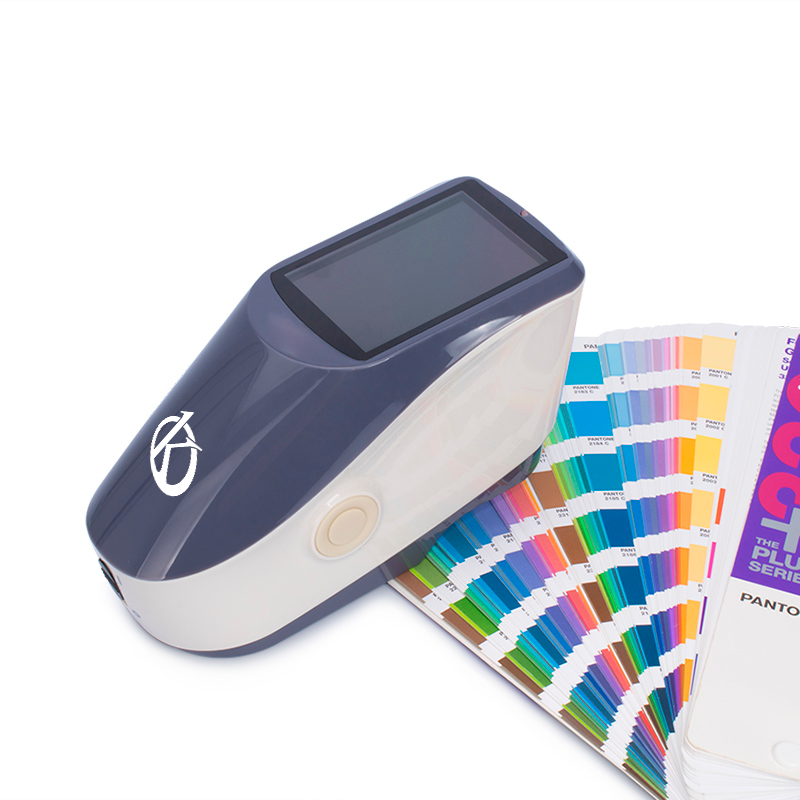

The Grating Spectrophotometer with 20mm Aperture YR05503 is a high-precision instrument from Kalstein designed to deliver exceptional color analysis for labs and industries that demand reliability and accuracy. Featuring a 45/0 optical system with ring-shaped illumination at 45° and 0° observation angle, it excels in precision color transmission and analysis. Compatible with international standards such as CIE No.15, ISO7724-1, and ASTM E1164, it is perfect for sectors like paints, textiles, inks, and signage. With its 20mm aperture, it allows precise measurements on larger samples. Its dual-matrix CMOS detector, combined LED light source with a UV option, and 3.5-inch touchscreen make it user-friendly while ensuring long-term durability.
Market Price
The YR05503 is positioned in the market at a competitive price range, making it a valuable investment for companies focused on stringent quality control and enhanced color management. For those who desire specific configurations, personalized quotes can be easily requested or generated automatically via the Kalstein Plus platform, tailored to your precise requirements.
Frequently Asked Questions
- What applications is the YR05503 ideal for?
This spectrophotometer is particularly suited for quality control in industries such as paints, textiles, inks, and evaluating the color of traffic signals and reflective materials. - Does it include Bluetooth connectivity?
Yes, the YR05503 is equipped with Bluetooth 4.0 and USB connectivity, facilitating seamless data transfer and system integration. - What is the lifespan of the light source?
The combined LED light source, including a UV option, boasts an approximate lifespan of 5 years, supporting over 3 million measurements.
Advantages and Disadvantages
The primary advantages of the YR05503 include precision in color analysis with a standard deviation of 0.08% in spectral reflectance and a 20mm aperture ideally suited for large samples. It is compliant with multiple international standards, offering user-friendly operation with its intuitive design. However, it is limited to a wavelength range of 400-700 nm, which may limit its applications outside the visible spectrum.
Field Applications
The YR05503 spectrophotometer is extensively used for precise color control in textile production, printing, and paint manufacturing. Its proficiency in measuring brightness and color coordinates in traffic signals and reflective films ensures consistency and product quality. This device’s portability and accuracy make it suitable for both lab settings and quality control on production lines.
Recommendations
To optimize the YR05503’s performance, it is crucial to maintain it in a clean environment and conduct periodic calibrations for precise measurements. Its lithium-ion battery supports up to 5,000 measurements over 8 hours, so regular recharging is advised. Request a custom quote or generate your quote on Kalstein Plus to discover how the Grating Spectrophotometer with 20mm Aperture YR05503 can enhance color control in your industry, boosting precision and efficiency across processes.
Product Features
- 45/0 optical system for precise color analysis.
- 20mm measuring aperture for large samples.
- Dual-matrix CMOS detector with a combined LED light source.
- Bluetooth 4.0 and USB connectivity for easy data management.
- User-friendly 3.5-inch touchscreen interface.
Technical Specifications
| Model | YR05503 |
| Illumination/Observation system | 45/0(45 ring-shaped illumination, vertical viewing); |
| Comply with CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1, ASTM E1164, DIN5033 Teil7,GB 2893、GB/T 18833 | |
| Features | 20mm aperture special design for traffic signs , It is used to measure the brightness factor and color coordinates of traffic signs, markings and reflective films. It contains GB 2893 and GB/T 18833 standard colors. It can customize the rectangular tolerance of polygons manually. |
| It is used for accurate analysis and transmission of laboratory color, also for Fluorescence sample color measurement . | |
| Apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control. | |
| Integrating Sphere Size | Φ48mm |
| Light Source | Combined LED Light, UV Light |
| Spectral separation device | Concave Grating |
| Detector | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 400~700nm |
| Wavelength Pitch | 10nm |
| Half Bandwidth | 10nm |
| Reflectance Range | 0~200% |
| Measuring Aperture | Φ20mm |
| Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV，HunterLAB,βxy |
| Color Difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE（Hunter） |
| Other Colorimetric Index | WI(ASTM E313，CIE/ISO,AATCC,Hunter)， |
| YI(ASTM D1925，ASTM 313), | |
| MI (Metamerism Index), | |
| Staining Fastness, Color Fastness, Color Strength, Opacity, Supporting Colorimetric Polygon Tolerance | |
| Observer Angle | 2°/10° |
| Illuminant | D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4，F5，F6,F7(DLF),F8,F9，F10(TPL5), F11(TL84), F12(TL83/U30) |
| Display Data | Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset |
| Measurement Time | About 1.5s |
| Repeatability | Spectral reflectance: Standard deviation within 0.1% (400 nm to 700 nm: within 0.2%) |
| Chromaticity value:within ΔE*ab 0.04 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) | |
| Inter-instrument Error | Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles) |
| Measurement mode | Single Measurement, Average Measurement(2-99) |
| Size(L*W*H) | 184*77*105mm |
| Weight | About 600g |
| Power source | Li-ion battery. 5000 measurements within 8 hours |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display | 3.5-inch TFT color LCD, Capacitive Touch Screen |
| Interface | USB, Bluetooth 4.0 |
| Data memory | Standard 1000 Pcs, Sample 30000 Pcs |
| Language | Chinese,English |
| Working Environment | Temperature: 0~40℃; Humidity: 0~85% (No Condensation); altitude: less than 2000 m |
| Storage Environment | Temperature: -20~50℃; Humidity: 0~85% (No Condensation)） |

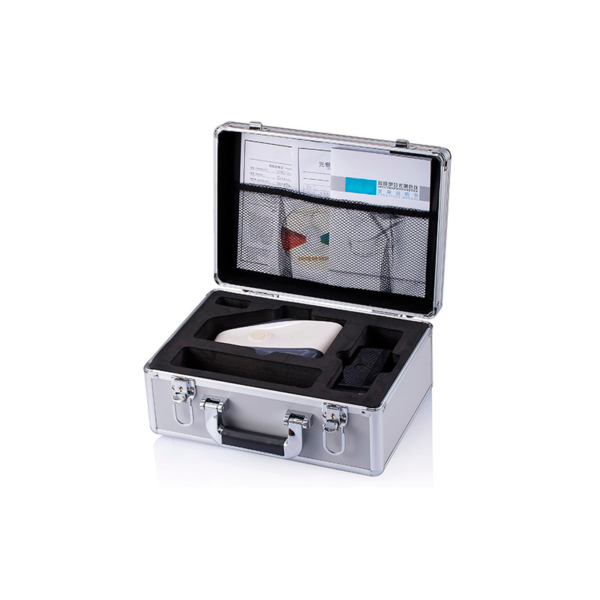

| Standard Accessory | Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software (download from the website) White and Black Calibration Board, Protective Cover. |
| Optional Accessory | Micro Printer, Powder Test Box, Universal test components, Locating Plate |
| Notes: The specifications are subject to change without notice. | |
