Description

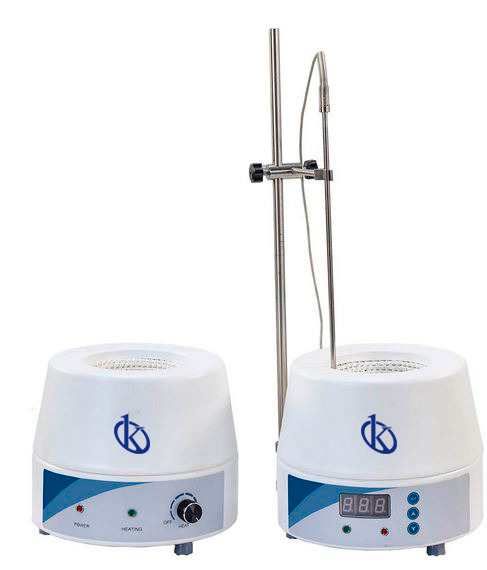

The Heating Mantle YR05039 // YR05048 is an essential piece of laboratory heating equipment, celebrated for its precision and versatility. Designed with a robust one-piece shell made from durable cold-rolled steel and finished with a protective surface spray treatment, this heating mantle guarantees long-lasting reliability. The swift-heating nichrome wire minimizes wait times and extends service life, making it ideal for precise experimental requirements. Featuring a user-friendly interface and precise PID temperature control, this model accommodates a wide range of applications. It offers the convenience of digital single-position mantles with an outer sensor, while the multi-position version includes an optional inner or outer sensor.
Market Pricing
The Heating Mantle YR05039 // YR05048 is competitively priced, with costs varying based on the model and capacity chosen. This product can be found within an affordable price range depending on its features and specifications. Customers are encouraged to reach out to suppliers or visit product distributor websites for precise pricing information.
Frequently Asked Questions
What is the maximum temperature the heating mantle can reach? The maximum operational temperature is 380°C, which offers ample heating capacity for various laboratory applications.
Can the heating mantle be used continuously? Yes, the design of the Heating Mantle YR05039 // YR05048 supports continuous operation, ensuring consistent performance over prolonged periods.
Advantages and Disadvantages
Advantages: Easy to operate and highly versatile, offering digital controls for precise temperature regulation.
Disadvantages: The initial investment may be higher compared to basic heating solutions, but the durability and precision justify the cost.
Product Use in the Field
This heating mantle is perfect for chemistry laboratories where precise temperature control is crucial. It is commonly utilized for heating flasks containing reactants that require uniform heating to maintain reaction equilibrium and effectiveness.
Recommendations
For optimal performance, ensure that the mantle is connected to the appropriate voltage as specified in the technical description. Regular maintenance and cleaning will extend the device’s service life and efficiency. To experience the benefits of this reliable heating solution, request a quote or generate one automatically through the Kalstein Plus platform today.
Features
- Durable cold rolled steel shell with spray treatment
- Nichrome heating wire for fast heating and long life
- Precise PID temperature control
- Available with outer or inner sensors for temperature detection
- Operates on a wide voltage range (200 – 240V / 50 – 60Hz or 100 – 120V / 50 – 60Hz)
Technical Specifications
| Type | Analog | ||||
| Model | YR05039 | YR05040 | YR05041 | YR05042 | YR05043 |
| Capacity (ml) | 100 | 250 | 500 | 1,000 | 2,000 |
| Voltage (V) | 200 – 240V / 50 – 60Hz or 100 – 120V / 50 – 60Hz | ||||
| Max Use Temperature(°C) | 380 | ||||
| Speed (W) | 100 | 150 | 250 | 350 | 450 |
| Speed (r.p.m) | 0 – 1,600rpm | ||||
| Working Time | Continuous | ||||
| Exterior Size(mm) | Ø200×165 | Ø260×200 | Ø300×230 | ||
| Packing Size(mm) | 230x210x195 | 290x290x220 | 330x330x250 | ||
| Net Weight (kg) | 2.5 | 4.5 | 6.5 | ||
| Gross Weight(kg) | 3.5 | 5.5 | 7 | ||
| Type | Digital | ||||
| Model | YR05044 | YR05045 | YR05046 | YR05047 | YR05048 |
| Capacity (ml) | 100 | 250 | 500 | 1,000 | 2,000 |
| Voltage (V) | 200 – 240V / 50 – 60Hz or 100 – 120V / 50 – 60 Hz | ||||
| Max Use Temperature(°C) | 380 | ||||
| Speed (W) | 100 | 150 | 250 | 350 | 450 |
| Speed (r.p.m) | 0 – 1,600rpm | ||||
| Working Time | Continuous | ||||
| Exterior Size(mm) | Ø220 x 165 | Ø260 x 200 | Ø330 x 230 | ||
| Packing Size(mm) | 230x210x195 | 290x290x220 | 345x290x350 | ||
| Net Weight (kg) | 2.5 | 4.5 | 6.5 | ||
| Gross Weight(kg) | 3.5 | 5.5 | 7 | ||
