Description

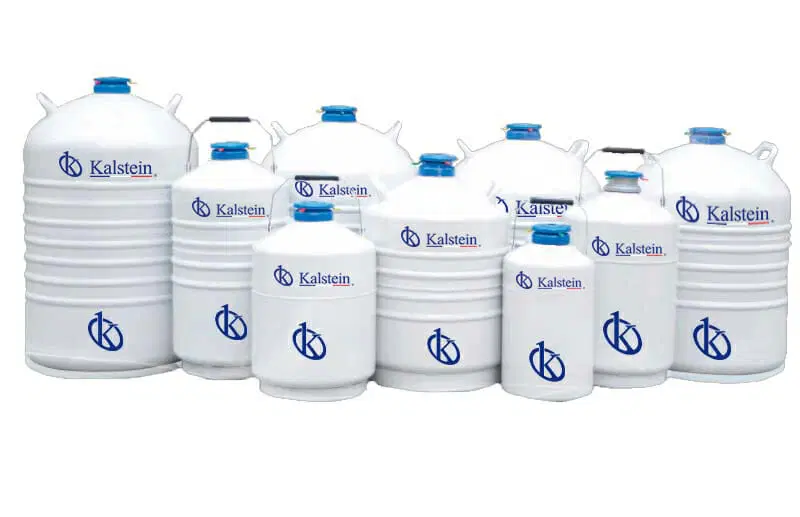

The High Capacity Series for Storage or Transport (Round Canisters) YR05403 // YR05416 offers an unmatched solution for efficient and secure biological sample storage. Constructed from robust, lightweight aluminum, these canisters deliver superior thermal efficiency and minimal evaporation loss, crucial for prolonging the holding time of liquid nitrogen (LN₂). Featuring a narrow neck design and available in multiple sizes, these canisters are ideal for safely storing and transporting biological samples.
Market Price
The market price for the High Capacity Series varies based on the specific model and additional features such as lockable enclosures and roller bases. For exact pricing, we recommend requesting a quotation or utilizing the automatic quote feature available through our Kalstein Plus platform.
Frequently Asked Questions
Q: What capacities do these canisters support?
A: The models have varying capacities, supporting between 6 to over 20,000 0.25ml straws, depending on their configuration.
Q: Is the lockable feature available on all models?
A: Yes, most models include a lockable enclosure for added security. Specific details can be confirmed for each model.
Advantages and Disadvantages
The primary advantage of the High Capacity Series is its excellent insulation, which results in lower evaporation rates and extended holding times. They are sturdy yet lightweight, suitable for transport. However, models with higher capacities may be less compact, potentially affecting portability.
Field Use
These canisters are mainly used in laboratories, research facilities, and medical centers for storing biological samples such as cryopreservation straws for cell lines, tissues, or other biological materials. Their design ensures easy access and transport, particularly beneficial in dynamic environments where space is limited.
Recommendations
For optimal results, regularly monitor the liquid nitrogen levels and maintain them within the specified ranges to preserve the integrity of stored samples. Consider investing in a roller base for models frequently used for transportation.
Key Features
- Strong and lightweight aluminum construction
- Heavy-duty lockable enclosure for superior security
- Numbered index location points for canisters
- Straw storage capability
- Available LN₂ dispense pump
- Optional roller bases
- High thermal efficiency
- 5-year vacuum warranty
- Ultra-low evaporation loss
Technical Specifications
| Model | YR05403 | YR05404 | YR05405 | YR05406 | YR05407 | YR05408 | YR05409 | |
| Maximum Capacity | No. of Canister | 6（0） | ||||||
| No. of Straws
(Single Layer) (0.5ml each canister) |
2244 | 792 | 2244 | |||||
| No. of Straws
(Single Layer) (0.25ml each canister) |
5022 | 1788 | 5022 | |||||
| No. of Straws
(Double Layer) (0.5ml each canister) |
3624 | 1284 | 3624 | |||||
| No. of Straws
(Double Layer) (0.25ml each canister) |
8460 | 2832 | 8460 | |||||
| Performance | Volume of LN2 (L) | 30 | 35 | 35 | ||||
| Static Evaporation* (L/Day) | 0.21 | 0.12 | 0.22 | |||||
| Static Holding Time** (Day) | 147 | 286 | 159 | |||||
| Dimensions | Opening Diameter (mm) | 80 | 50 | 80 | ||||
| Height (mm) | 709 | 749 | 753 | |||||
| Outside Diameter (mm) | 462 | 462 | 462 | |||||
| Canister Outside Diameter (mm) | 63 | 38 | 63 | |||||
| Outside Height(mm) | 120 / 276 | |||||||
| Empty Weight (kg) | 13 | 14.2 | 14.5 | |||||
| Full Weight (kg) | 37 | 42.7 | 42.9 | |||||
| Shipping Weight (kg) | 18.3 | 20 | 20.7 | |||||
| Additional Features | Includes 6 canisters
(height 276mm), lockable cap and protective jacket, roller base is optional |
Includes 6 canisters (height 120mm),
lockable cap and protective jacket, roller base is optional |
Includes protective jacket only,
roller base is optional |
Includes 6 canisters
(height 276mm), lockable cap and protective jacket, roller base is optional |
Includes 6 canisters
(height 120mm), lockable cap and protective jacket, roller base is optional |
Includes protective
jacket only, roller base is optional |
Includes 6 canisters
(height 276mm), lockable cap and protective jacket, roller base is optional |
|
| Model | YR05410 | YR05411 | YR05412 | YR05413 | YR05414 | YR05415 | YR05416 | |
| Maximum Capacity | No. of Canister | 6（0） | ||||||
| No. of Straws
(Single Layer) (0.5ml each canister) |
2244 | 792 | 2244 | 5124 | 792 | |||
| No. of Straws
(Single Layer) (0.25ml each canister) |
5022 | 1788 | 5022 | 11640 | 1788 | |||
| No. of Straws
(Double Layer) (0.5ml each canister) |
3624 | 1284 | 3624 | 9048 | 1284 | |||
| No. of Straws
(Double Layer) (0.25ml each canister) |
8460 | 2832 | 8460 | 20760 | 2832 | |||
| Performance | Volume of LN2 (L) | 35 | 20 | 30 | 35 | 35 | 35 | 50 |
| Static Evaporation* (L/Day) | 0.22 | 0.2 | 0.3 | 0.41 | 0.24 | |||
| Static Holding Time** (Day) | 159 | 101 | 159 | 179 | 119 | 86 | 213 | |
| Dimensions | Opening Diameter (mm) | 80 | 50 | 80 | 125 | 50 | ||
| Height (mm) | 753 | 672 | 705 | 749 | 753 | 748 | 810 | |
| Outside Diameter (mm) | 462 | 394 | 462 | 462 | 462 | 462 | ||
| Canister Outside Diameter (mm) | 63 | 38 | 63 | 97 | 38 | |||
| Outside Height(mm) | 120/276 | |||||||
| Empty Weight (kg) | 14.5 | 9.5 | 12.9 | 14.2 | 14.5 | 14.6 | 17.2 | |
| Full Weight (kg) | 42.9 | 27.9 | 37.1 | 42.8 | 43 | 43.5 | 60.3 | |
| Shipping Weight (kg) | 20.7 | 15.1 | 18.3 | 20.1 | 20.7 | 22 | 24 | |
| Additional Features | Includes protective jacket only,
roller base is optional |
Includes protective
jacket only. |
Includes protective
jacket only, roller base is optional |
Includes
protective jacket only, roller base is optional |
Includes protective jacket only,
roller base is optional |
Includes protective
jacket only. |
Includes protective jacket
only, roller base is optional |
|
