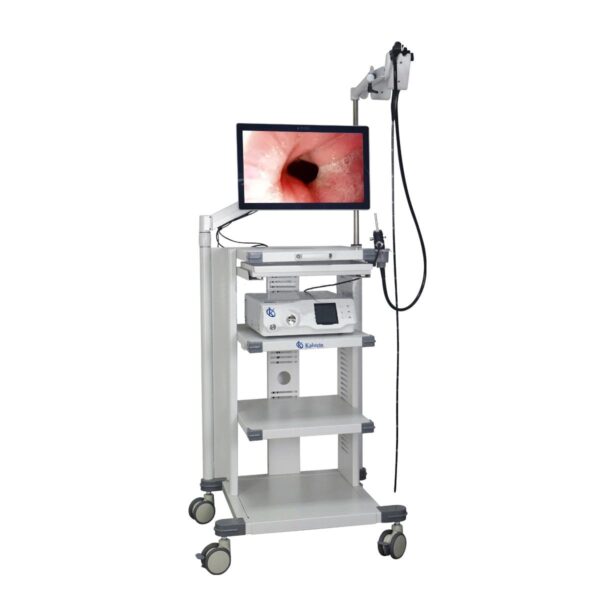

High-Definition Veterinary Video Endoscope YR06145//YR06150

ManufacturerKalstein

Description

The High-Definition Veterinary Video Endoscope YR06145//YR06150 is crafted to elevate veterinary diagnostic procedures, including gastroscopy, colonoscopy, and bronchoscopy, in both small companion animals like dogs and cats and larger animals such as horses and cattle. Its adaptability also supports other procedures like rhinoscopy, hysteroscopy, and laryngoscopy. Equipped with state-of-the-art CMOS technology, it offers high-resolution imaging of 720P or 1080P, ensuring exceptional clarity and precision in various clinical settings.

Market Price

The market range for veterinary video endoscopes such as the YR06145//YR06150 reflects the premium quality and technological sophistication inherent in these instruments. The specific pricing can vary depending on the features offered by different suppliers, yet they consistently demonstrate excellent value due to their robust capabilities and advanced technology.

Frequently Asked Questions

What types of animals can this endoscope be used on? This endoscope is versatile enough for use in both small companion animals, like dogs and cats, as well as larger animals, including horses and cattle.

Does the endoscope come with a warranty? Yes, a comprehensive warranty is typically included with the endoscope. For exact terms, consult your supplier.

Advantages and Disadvantages

  • Advantages: High-definition imaging, broad clinical applications, ergonomic design for user comfort, and durable construction for long-term use.
  • Disadvantages: Initial costs might be high for smaller veterinary clinics, and proper operation requires trained personnel.

Product Usage in the Field

The High-Definition Veterinary Video Endoscope is indispensable in modern veterinary medicine, supporting a wide range of procedures from routine examinations to intricate surgeries. With its high-definition imaging, veterinarians can achieve accurate diagnostics and thorough evaluations, crucial for the health and well-being of animals.

Recommendations

To extend the life of the endoscope, ensure regular maintenance and proper staff training to fully exploit its features. Consider requesting a quote or start generating one through Kalstein Plus for strategic financial planning.

Features

  • Professional endoscope image workstation for precise medical data recall
  • Comprehensive medical record management with report printing capabilities
  • 21.5-inch touch screen medical grade monitor
  • Ergonomic handle with multipurpose buttons and four-way angulation
  • High brightness LED light with excellent color restoration
  • Nine-level brightness adjustment catering to various clinical scenarios

Technical Specifications

Model Diameter of Insertion Tube Working Channel Working Length View Angle View Depth Range of Bending Resolution
YR06145 6.8 mm 2.2 mm 1500 mm 120° 3~100 mm 210° (U), 130° (D)
100° (R), 100° (L)
HD 720P
(1M pixels)
YR06146 7.8 mm 2.8mm 1500 mm 120° 3~100 mm 180° (U), 130° (D)
100° (R), 100° (L)
HD 720P
(1M pixels)
YR06147 7.8mm 2.2mm 1500 mm 140° 3~100mm 180°(U), 130°(D)
100°(R),100°(L)
FHD 1080P
(2M pixels)
YR06148 9.2mm 2.8mm 1500 mm 140° 3~100mm 180°(U), 130°(D)
100°(R),100°(L)
FHD 1080P
(2M pixels)
YR06149 9.2mm 2.8mm 3000 mm 140° 3~100mm 180°(U), 130°(D)
100°(R),100°(L)
FHD 1080P
(2M pixels)
YR06150 11.5mm 3.2mm 3500 mm 140° 3~100mm 180°(U), 130°(D)
160°(R),160°(L)
FHD 1080P
(2M pixels)

Additional information

Weight 8 kg
Dimensions 66 × 21 × 50 cm
Model

YR06145, YR06146, YR06147, YR06148, YR06149, YR06150
