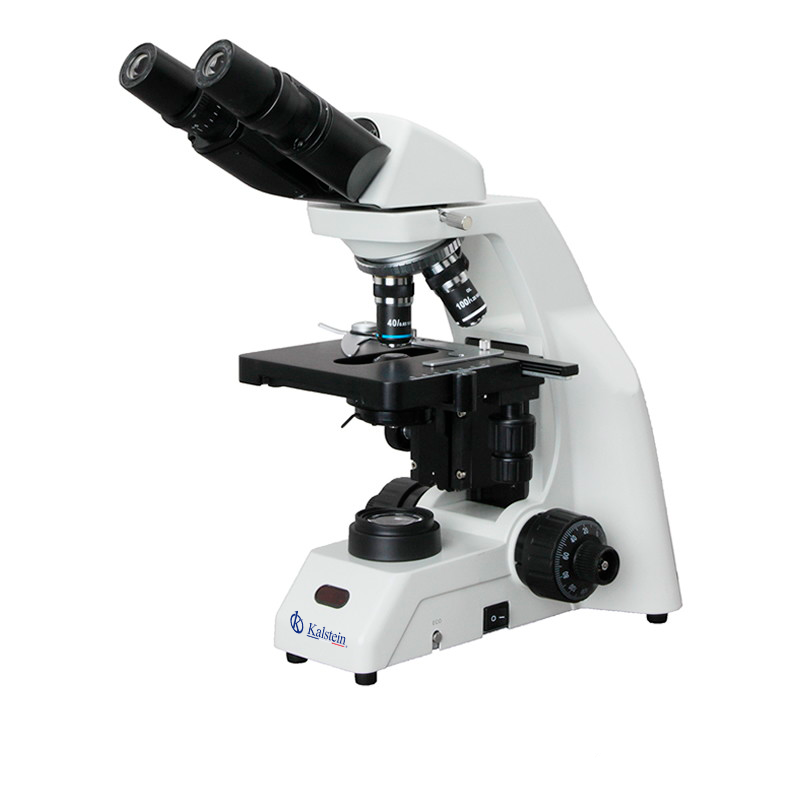

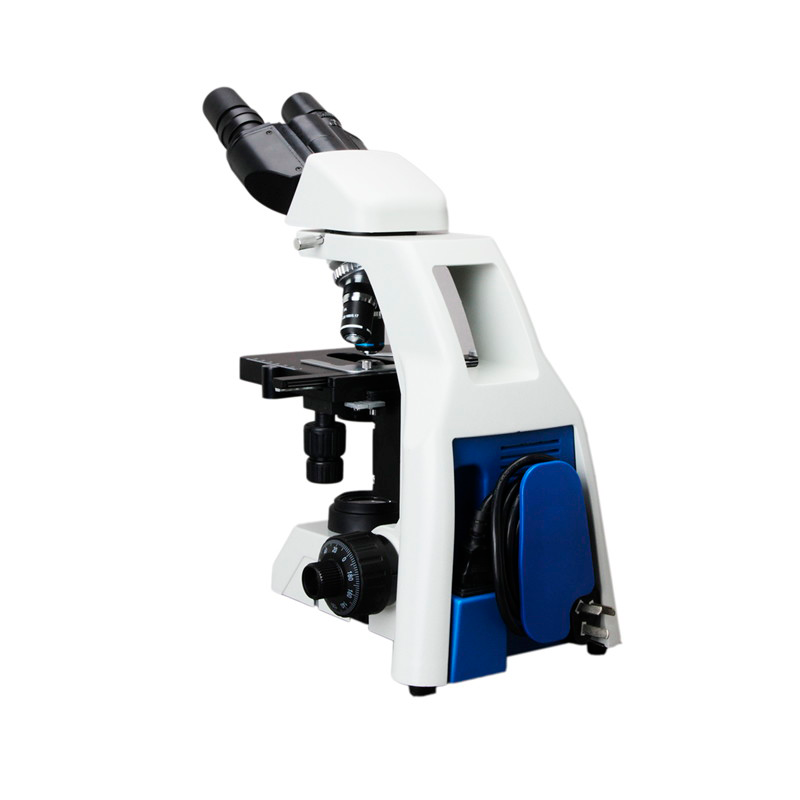

Laboratory Microscope YR0239 - YR0240

Description

The Laboratory Microscope YR0239 – YR0240 offers superior optical performance with its finite optical system and wide-field eyepieces (WF10X/18). Equipped with a Seidentopf binocular viewing head, this microscope ensures comfortable viewing with an inclination of 30° and interpupillary distance of 47-78 mm. The microscope features coaxial fine and coarse adjustments, with a fine division of 0.002 mm and a moving range of 25 mm, allowing for precise focusing. Moreover, it includes a double-layer mechanical stage with a moving range of 75 x 50 mm and is complemented by various achromatic objectives ranging from 4X to 100X, adaptable to diverse observational needs in the laboratory.

Market Price

The pricing for the Laboratory Microscope YR0239 – YR0240 varies widely depending on the specific model and features selected, reflecting common market trends for high-quality microscopes. To obtain an accurate quote tailored to your needs, consider reaching out directly for a customized pricing option.

Frequently Asked Questions

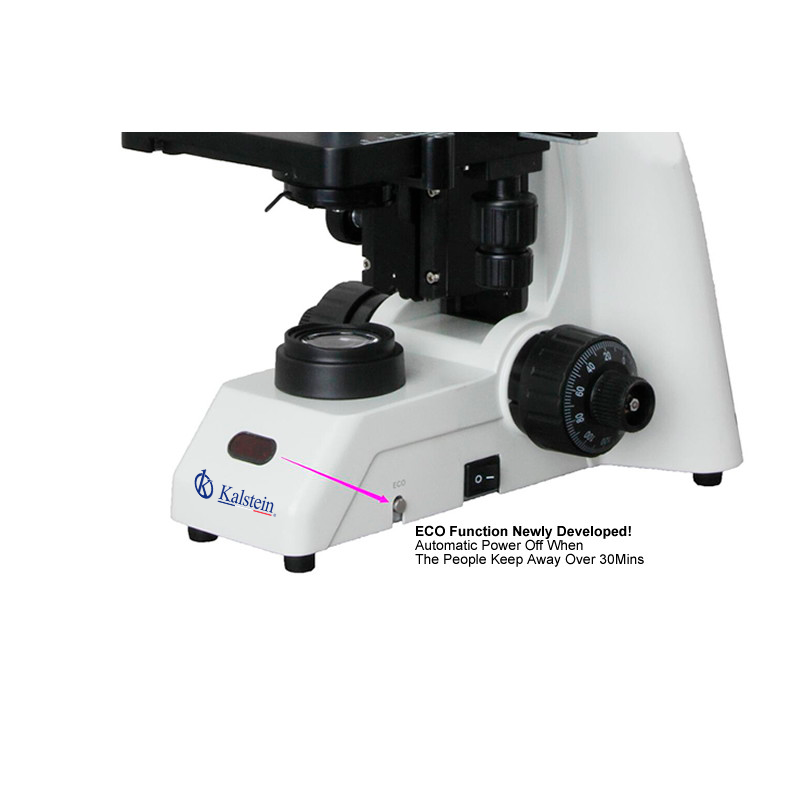

What is the main difference between models YR0239 and YR0240? The primary difference lies in features like the ECO function, which is present in the YR0240 and turns off automatically after 30 minutes of inactivity to save power.

Can this microscope be used for educational purposes? Yes, its versatile optical capabilities make it suitable for both educational and professional laboratory environments.

Advantages and Disadvantages

Advantages: The microscope provides robust optical performance with a versatile range of magnifications and illumination options. Its ergonomic design allows for prolonged use without discomfort. Additionally, the ECO function in model YR0240 contributes to energy efficiency.

Disadvantages: The complexity of the microscope might require training for optimal use. Moreover, additional accessories for digital viewing or fluorescence may increase the overall cost.

Product Use in the Field

In practical settings, the Laboratory Microscope YR0239 – YR0240 is ideal for detailed observation of biological samples, making it invaluable in research labs, medical diagnostics, and higher education. Its precision focusing and interchangeable objectives allow users to conduct thorough examinations across various magnifications.

Recommendations

To maximize the efficiency and longevity of your microscope, regular cleaning and proper storage are recommended. Ensure the lenses and eyepieces are free from dust and debris to maintain clarity. For further technical support and to generate a real-time quotation, consider utilizing the Kalstein Plus platform for seamless service and procurement.

Features

Darkfield condenser capable of dry and oil immersion
Seidentopf binocular viewing head, 30° inclined, interpupillary 47-78 mm
Coaxial fine and coarse adjustment, 0.002 mm fine division, 25 mm moving range
Various achromatic objectives (4X, 10X, 40X, 100X)
Double-layer mechanical stage, moving range 75X50 mm
LED illumination, with S-LED and ECO functionality available

Technical Specifications

Model		YR0239	YR0239-1	YR0240	YR0240-1
Optical System	Finite Optical System
Eyepiece	WF10X/18
Viewing Head	Monocular Head Inclined at 30°	○	○	○	○
	Seidentopf Binocular Viewing Head Inclined at 30°, Interpupillary 47-78mm	●		●
	Seidentopf Trinocular Viewing Head Inclined at 30°, Interpupillary 47-78mm		●		●
	Digital Viewing Head Inclined at 30°, Interpupillary 47-78mm, 5M pixels, Support Wifi	○	○	○	○
	Digital Viewing Head Inclined at 30°, Interpupillary 47-78mm, 5M pixels, 8″LCD. Android OS	○	○	○	○
Achromatic Objective	4X N.A=0.1 WD=37.5	●	●	●	●
	10X N.A=0.25 WD=7.316	●	●	●	●
	20X N.A=0.4 WD=13	○	○	○	○
	40X N.A=0.65 WD=0.632	●	●	●	●
	100X N.A=1.25 WD=0.198	●	●	●	●
Nosepiece	Backward Quadruple Nosepiece	●	●	●	●
Stage	Double Layers Mechanical Stage 140X140mm, Moving Range 75X50mm
Condenser	NA1.25 Abbe Condenser	●	●	●	●
Condenser	Dark Field Condenser (Dry, Oil)	○	○	○	○
Focusing System	Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Moving Range 25mm
Illumination	Halogen Lamp 6V/20W	○	○	○	○
	S-LED Illumination	●	●	●	●
	S-LED Illumination with Recharger	○	○	○	○
	Kohler Illumination	○	○	○	○
	ECO Function (Auto Power Off After 30 Mins No Operation)	○	○	●	●
	Plane-concave Mirror	○	○	○	○
Fluorescent Attachment	Fluorescent Illumination, LED Lamp	○	○	○	○
Fluorescent Attachment	Fluorescent Illumination, 100W HBOLamp	○	○	○	○
Polarzation Set		○	○	○	○
Phase Contrast Kit		○	○	○	○

Additional information

Weight	N/A
Dimensions	N/A
Model	YR0239, YR0239-1, YR0240, YR0240-1
