Description

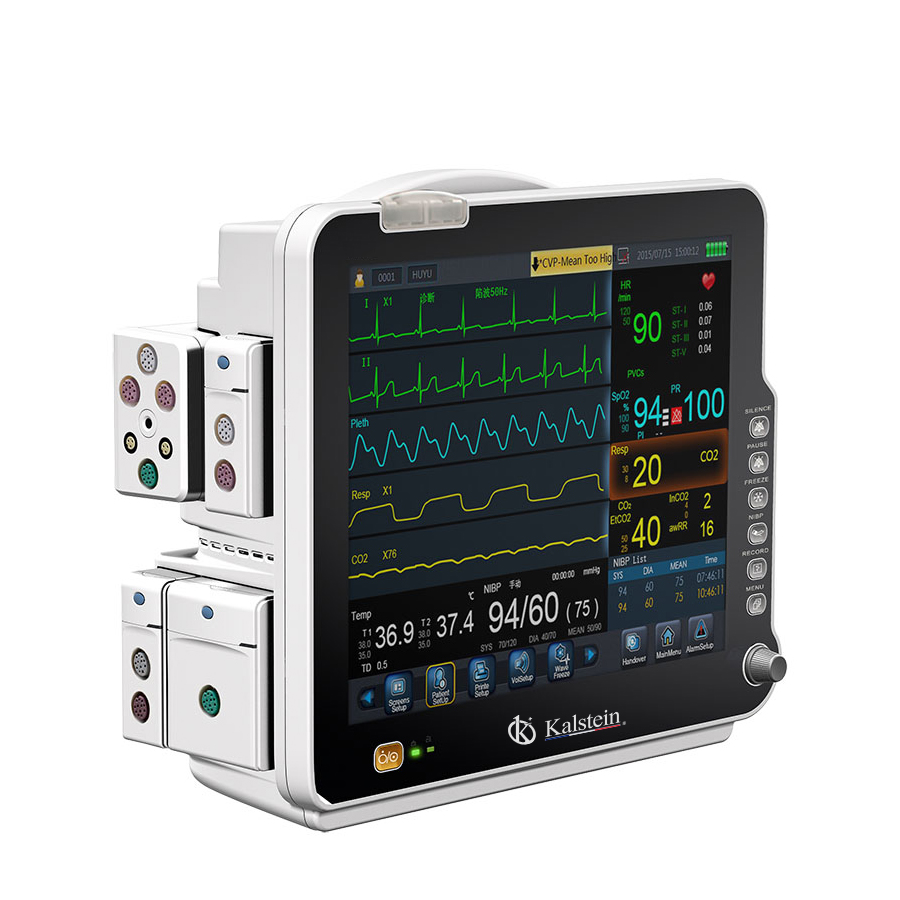

The Multi-parameter Patient Monitor YR02177 is an advanced medical device crafted for comprehensive monitoring in critical care settings, such as operating rooms and intensive care units. Equipped with a robust 17-inch LCD screen and modular parameter options, it allows healthcare professionals to customize the device according to specific patient needs. Standard parameters include ECG, SPO2, TEMP, NIBP, RESP, and PR/HR, providing essential insights into the patient’s health status.
Market Price
In the competitive market for multi-parameter patient monitors, prices vary considerably due to factors like advanced features and quality components that guarantee precise and reliable patient monitoring. The Multi-parameter Patient Monitor YR02177 stands out with its cutting-edge technology and customizability for varied clinical needs.
Frequently Asked Questions
What type of patients can be monitored? The device is suitable for adult, pediatric, and neonatal patients, with tailored HR and RESP ranges for each group.
Is the device portable? Yes, the monitor offers versatility by being mountable on a trolley or a wall, fitting seamlessly into diverse clinical settings.
Does it come with a warranty? Typically, a manufacturer’s warranty is included, and it’s advisable to confirm the specifics during the purchasing process.
Advantages and Disadvantages
The Multi-parameter Patient Monitor YR02177 boasts significant benefits, including high accuracy, modular design for personalized monitoring, and durable construction. However, the initial investment might be a concern for smaller practices. Nonetheless, the long-term reliability and performance justify the cost.
Product Usage in Field
This monitor is widely used in both operating rooms and intensive care units, where real-time monitoring is crucial. Its capability to evaluate multiple physiological parameters facilitates early intervention, leading to improved patient outcomes.
Recommendations
To ensure optimal performance, regular maintenance checks and software updates are recommended. Utilize the device in a clean, safe environment, and consult the user manual for best practices. For a seamless purchasing experience or to request a quote, consider using our Kalstein Plus platform today!
Features
- 17-inch LCD display
- Standard parameters: ECG, SPO2, TEMP, NIBP, RESP, PR/HR
- Modular design for tailored monitoring solutions
- Optional advanced monitoring capabilities
- Audio-video alarm system
- Easy integration into various clinical settings
Technical Specifications
| Model | YR02177 | |
| ECG | Lead mode | 5 Leads(RA,LA,LL,RL,V) |
| Connection method | I, II, III,AVR,AVL,AVF,V | |
| Lead Mode | 3 Leads (RA,LA,LL) | |
| Connection method | I, II,III | |
| Waveform | 1ch | |
| Gain | x250, x500, x1000, x2000 | |
| HR Range | Adult: 15~300bpm | |
| Neo/Ped | 15~350bpm | |
| Accuracy | ±1% or ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200(uVp-p) | |
| Differential input impedance | ≥5MΩ | |
| ST segment Monitoring Range | ||
| Measure Range | -2.0~+2.0mV | |
| Measure Accuracy | -0.8mV~+0.8mV | |
| Heart Rate | Measuring range | 10~300bpm |
| Accuracy | ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200UVp-p | |
| Respiration | Method | Impedance between R-F(RA-LL) |
| Differential Input Impedance | >2.0MΩ | |
| Measuring Impedance Range | 0.3~3.0 MΩ | |
| Base line Impedance Range | 200~4000Ω | |
| Bandwidth | 0.1~2.5Hz | |
| Resp. Rate | Adult: 2~120BrPM | |
| Neo/Ped | 0~150BrPM | |
| Resolution | 1 BrPM | |
| Accuracy | ±2 BrPM | |
| Alarm | 10~40S | |
| NIBP | Method | Oscillometric |
| Mode | Manual/Auto/STAT | |
| Measuring Interval in AUTO Mode | 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min) | |
| Measuring Period in STAT Mode | 5 Min | |
| Pulse Rate Range | 40~240bpm | |
| Alarm Type | SYS, DIA, MEAN | |
| Resolution | ||
| Pressure | 1mmHg | |
| Accuracy | Maximum Mean error: 5mmHg | |
| Maximum Standard deviation | 8mmHg | |
| SPO2 | Display | Number of SPO2,waveform of capacity,Pulse |
| Measuring range | 0~100% | |
| Resolution | 1% | |
| Accuracy | 70~100% (±2%) | |
| Alarm system | Audio-video alarm | |
| Pulse rate range | 0~300bpm | |
| TEMP | Channel | 2 |
| Measuring and Alarm Range | 0~50ºC | |
| Resolution | 0.1ºC | |
| Accuracy | 0.1ºC | |
| Actualization interval | about 1 Second. | |
| Average Time Constant | <10 Second. | |
