Description

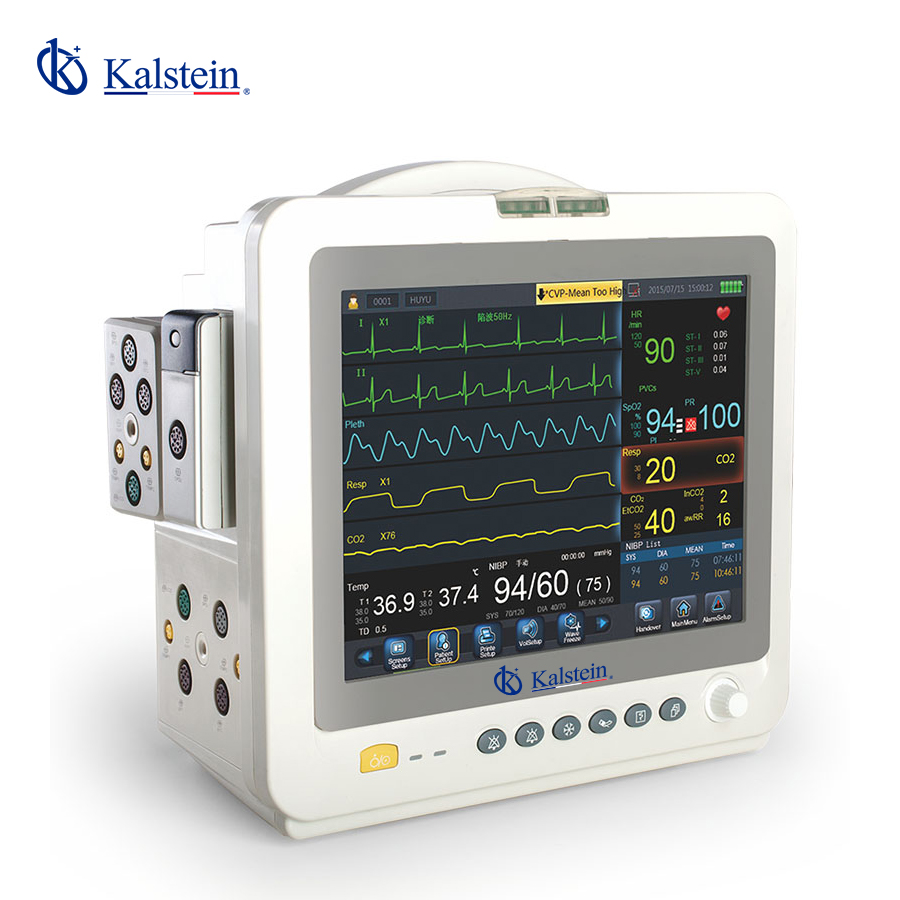

The Multi-parameter Patient Monitor YR02178 // YR02179 is an advanced medical device, specifically engineered to elevate patient care in high-stakes environments such as operating theaters and Intensive Care Units (ICUs). It features a versatile LCD screen with optional touch capability and a semi-modular design that incorporates essential monitoring functions such as ECG, SpO2, TEMP, NIBP, RESP, and PR/HR. Standard configurations are equipped with a 5-lead ECG and dual temperature monitors, ensuring precise and reliable measurement of vital signs. Additionally, the monitor can be enhanced with optional features like Masimo/Nellcor SpO2 and dual-IBP, making it a perfect fit for diverse clinical requirements. Take a step forward in patient care by requesting a quote through our Kalstein Plus platform.
Market Price
The market for multi-parameter patient monitors shows a range of prices due to varying features and specifications. These devices are generally considered a worthwhile investment for healthcare facilities aiming to offer top-tier patient care solutions.
Frequently Asked Questions
Common inquiries about the YR02178 // YR02179 models often concern compatibility, and the answer is affirmative; these models are designed to seamlessly integrate with existing hospital systems. Questions about accuracy and reliability are addressed with their proven performance supported by advanced algorithms.
Advantages and Disadvantages
The significant advantages of the YR02178 // YR02179 include its semi-modular design that allows configuration flexibility and detailed monitoring across a wide parameter range. A potential downside might be the learning curve for new users due to its advanced features.
Product Use in the Field
In real-world usage, the YR02178 // YR02179 monitors deliver crucial real-time data vital for timely intervention in patient care, proving to be indispensable tools in ICUs and operating theaters where immediate responses are crucial.
Recommendations
To extend the lifespan and maximize the utility of your monitor, it is advisable to conduct regular calibration and software updates. Also, consider investing in optional features tailored to your clinical needs for enhanced functionality.
Features
- LCD screen with optional touch functionality
- Semi-modular with a broad range of standard and optional parameters
- Robust configuration offering ECG, NIBP, SpO2, TEMP, and more
- Customizable to meet specific patient monitoring needs
Technical Specifications
| Model | YR02178 | YR02179 | |
| ECG | Lead mode | 5 Leads(RA,LA,LL,RL,V) | |
| Connection method | I, II, III,AVR,AVL,AVF,V | ||
| Lead Mode | 3 Leads (RA,LA,LL) | ||
| Connection method | I, II,III | ||
| Waveform | 1ch | ||
| Gain | x250, x500, x1000, x2000 | ||
| HR Range | Adult: 15~300bpm | ||
| Neo/Ped | 15~350bpm | ||
| Accuracy | ±1% or ±1bpm | ||
| Resolution | 1bpm | ||
| Sensitivity | >200(uVp-p) | ||
| Differential input impedance | ≥5MΩ | ||
| ST segment Monitoring Range | |||
| Measure Range | -2.0~+2.0mV | ||
| Measure Accuracy | -0.8mV~+0.8mV | ||
| Heart Rate | Measuring range | 40~240bpm | |
| Accuracy | ±3bpm | ||
| Resolution | 1bpm | ||
| Sensitivity | >200UVp-p | ||
| Respiration | Method | Impedance between R-F(RA-LL) | |
| Differential Input Impedance | >2.5MΩ | ||
| Measuring Impedance Range | 0.3~3.0 MΩ | ||
| Base line Impedance Range | 200~4000Ω | ||
| Bandwidth | 0.1~2.5Hz | ||
| Respiration Rate | Adult: 7~120BrPM | ||
| Neo/Ped | 7~150BrPM | ||
| Resolution | 1 BrPM | ||
| Accuracy | ±2 BrPM | ||
| Alarm | 10~40S | ||
| NIBP | Method | Oscillometric | |
| Mode | Manual/Auto/STAT | ||
| Measuring Interval in AUTO Mode | 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min) | ||
| Measuring Period in STAT Mode | 5 Min | ||
| Pulse Rate Range | 40~240bpm | ||
| Alarm Type | SYS, DIA, MEAN | ||
| Resolution | |||
| Pressure | 1mmHg | ||
| Accuracy | Maximum Mean error: 5mmHg | ||
| Maximum Standard deviation | 8mmHg | ||
| SPO2 | Display | Number of SPO2,waveform of capacity,Pulse | |
| Measuring range | 0~100% | ||
| Resolution | 1% | ||
| Accuracy | 70~99% (±2%) | ||
| Alarm system | Audio-video alarm | ||
| Pulse rate range | 0~300bpm | ||
| TEMP | Channel | 2 | |
| Measuring and Alarm Range | 0~50ºC | ||
| Resolution | 0.1ºC | ||
| Accuracy | 0.1ºC | ||
| Actualization interval | about 1 Second. | ||
| Average Time Constant | <10 Second. | ||
