Description

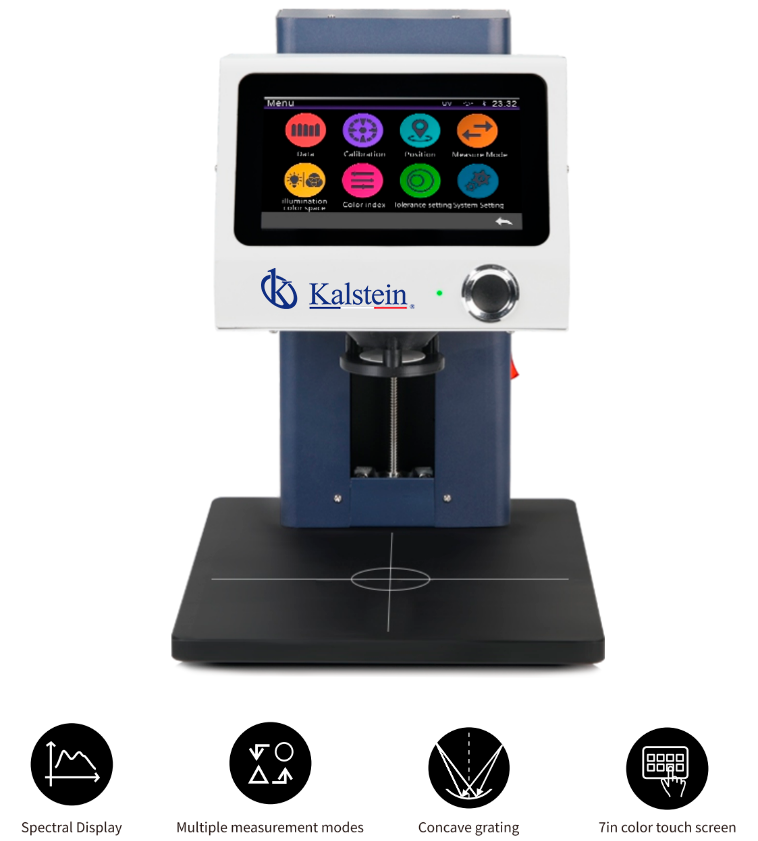

The Non-contact Spectrophotometer YR05481 is a cutting-edge solution for precise color measurement, leveraging the D/8 optical standard. Designed for unparalleled accuracy in non-contact color analysis, this device excels in measuring colors on powdery and unconventional materials, offering a distinct advantage in industrial and research environments. It features a full-spectrum LED light source and a high-precision CMOS image sensor to ensure stable, high-fidelity results across diverse sample types. Its 7-inch touch interface lends to ease of use and real-time data visualization, streamlining quality control in both automated production lines and laboratories that demand consistent precision.
Market Price
The Non-contact Spectrophotometer YR05481 is strategically positioned in the mid-to-high price range of its category, offering a competitive edge against top-tier brands. This makes it an excellent investment for industries that prioritize accuracy and measurement consistency. You can request a personalized quote via the Kalstein Plus platform to receive a proposal tailored to your specific needs.
Frequently Asked Questions
- Is this spectrophotometer suitable for automated production lines?
Yes, its non-contact design and high precision make it ideal for integration into production lines. - What are the data storage capabilities?
It can store up to 48,000 measurements, covering both sampling and statistical modes. - Is the measurement height adjustable?
Yes, the head is adjustable up to 160 mm to accommodate various sample types. - Which measurement modes are available?
It offers sampling, quality control, and continuous statistics modes to suit different applications.
Advantages and Disadvantages
The YR05481 offers significant advantages like its precision non-contact measurements, adjustable height for varied samples, and extensive data storage. However, its performance may decline in uncontrolled high-humidity environments, as its optimal operating range is up to 85% humidity without condensation.
Field Use
With its precise, non-contact measurement capability, the YR05481 is ideal for industries such as cosmetics, food, and ceramics, where accurate color measurement of irregular and moving surfaces is vital. It ensures stable and reproducible data, crucial for products demanding strict color and appearance standards.
Recommendations
Regular calibration and proper adjustment of measurement height according to sample size are recommended for optimal performance. Employing this device in controlled environments will extend the lifespan of its light source and internal components. Maximize your quality control process by requesting a customized quote through Kalstein Plus and experience the benefits of this high-precision spectrophotometer in your operations.
Features
- Non-contact precision measurement
- Adjustable measurement height up to 160 mm
- Extensive data storage capacity
- 7-inch touch interface for easy operation
- Full-spectrum LED light source
Technical Specifications
| Model | YR05481 |
| Optical Geometry | D/8 (diffuse illumination, receiving in 8° direction, SCL includes specular reflection light); CIE No.15, GB/T3978, GB 2893, GB/T 18833, 1907724-1, ASTME1164, DIN5033 Teil7 |
| Light Source | Full spectrum LED light source |
| Spectrophotometric Mode | Concave Grating |
| Sensor | 256-pixel dual-array CMOS image sensor |
| Wavelength Range | 400-700nm, 10nm output |
| Measured Reflectance Range | 0-200% |
| Measuring Aperture | 020mm (010mm can be customized) |
| Non-contact distance | 3.0mm(+0.2mm) |
| Sample height | 0-160mm (Using the original support base plate) |
| Distance adjustment method | Manual adjustment (storable test height) |
| Measurement mode | Sample mode, quality control mode, continuous statistics mode |
| Locating | Camera locating |
| Color Space | CIE LAB,XYZ,Yxy, LCh,CIE LUV, Musell,s-RGB, HunterLab,Bxy,DIN Lab99 |
| Color Difference Formula | AE*ab,AE*94,AE*cmc(2:1),4E*cmc(1:1),4E*00,4E (Hunter), DINAE99 |
| Other Colorimetric Index | WI(ASTM E313, CIE/ISO,AATCC,Hunter), YI(ASTM D1925,
ASTM 313),, Metamerism index MI,Staining Fastness, Color Fastness, Strength, Opacity |
| Observer Angle | 2°/10° |
| Illuminant | D65,A,C,D50,D55,075,F1,F2(CWF),
F3,F4,F5,F6,F7(DLF),F8,F9, F10 (TPL5),F11(TL84),F12(TL83/U30) |
| Displayed Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference
Values/Graph, Color simulation, pass/fail result, display tolerance can be set |
| Measuring Time | Fast mode about 1.0s (0.2-1.5s adjustable) |
| Data Storage | Sample mode + quality control mode 18,000;Continuous statistical
mode 30,000, totaling no more than 48,000 |
| Repeatability | In the optimal measurement mode (when a single measurement time is
1.5 seconds): Spectral reflectance: within 0.1% of standard deviation: Chromaticity value: AE*ab within 0.04(After the instrument is warmed up and calibrated, measure the average value of the whiteboard 30 times at an interval of 5s) |
| Inter-instrument Error | Within AE*ab 0.25(Measured average value of 12 tiles of BCRA series II) |
| Measurement method | Single measurement, average measurement (2-99 times) |
| Dimension | 330*250*370mm |
| Weight | About 10Kg |
| Power | AC 24V, 3A Power adapter power supply |
| illuminant Life Span | 5 years, more than 3 million times measurements |
| Display | 7-inch TFT color LCD, Capacitive Touch Screen |
| Data Port | USB |
| Language | Simplified Chinese, Traditional Chinese, English |
| Operating Environment | 0~40°C, 0-85%RH (no condensation), altitude: less than 2000m |
| Storage Environment | -20~50°C, 0-85%RH (no condensation) |
| Standard Accessory | Power adapter, manual, data cable, standard calibration board,
black calibration box |
| Notes | This model is specially suitable for streamlined production lines, in-depth function
customization will incur additional customization costs |
