Description

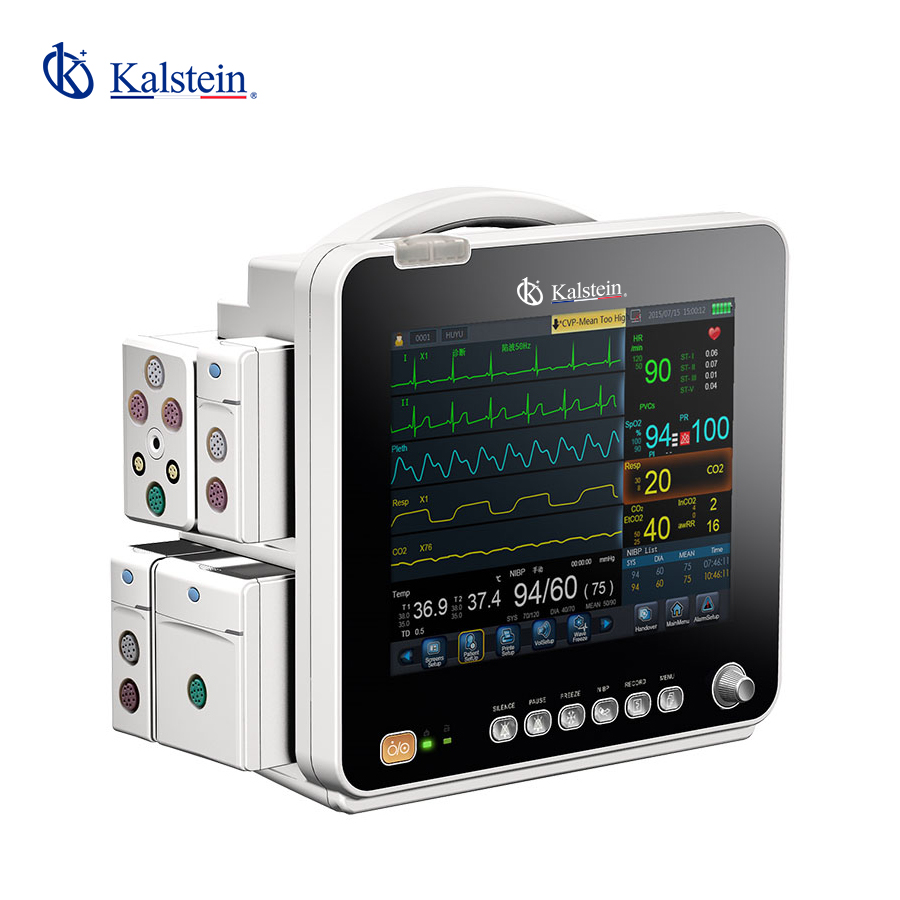

The Patient Monitor YR02175 is an essential device in modern medical settings, equipped with a 12.1-inch LCD screen designed for optimal clarity in various lighting conditions. Its modular setup allows integration of standard parameters, including ECG, SPO2, TEMP, NIBP, RESP, and PR/HR, providing comprehensive monitoring tailored to diverse clinical environments, such as the Operating Room and Intensive Care Unit. Its standout features, such as compatibility with both 3-lead and 5-lead ECG configurations and a robust alarm system, ensure precise and reliable patient care, even in the most demanding circumstances.
Market Price Overview
When evaluating advanced patient monitors like the YR02175, prices typically reflect the exceptional balance between functionality and cost-efficiency. This model competes strongly with current market offerings, providing healthcare facilities with premium features without the exorbitant expense of pricier alternatives. Investing in the YR02175 promises access to high-level monitoring capabilities at a compelling value.
Frequently Asked Questions
What makes the Patient Monitor YR02175 suitable for ICU settings? Its integration of essential parameters like ECG, SPO2, and NIBP is specifically designed to support critical care environments.
Is the display visible in various lighting conditions? The 12.1-inch LCD screen is optimized for different lighting scenarios, ensuring critical information is easily accessible.
Advantages and Disadvantages
The advantages of the Patient Monitor YR02175 include high measurement accuracy, modular flexibility, and a comprehensive alarm system apt for critical care settings. However, its advanced features may require an initial training period for staff unfamiliar with sophisticated monitoring equipment.
Product Usage in the Field
In practical scenarios, the YR02175 is deployed for continuous vital signs monitoring, rapidly alerting healthcare teams to any irregularities. This supports swift and informed medical decision-making, significantly enhancing patient outcomes.
Recommendations
To maximize the effectiveness of the Patient Monitor YR02175, regular calibration and maintenance are advised. Comprehensive staff training will further enhance its utility and effectiveness in delivering superior patient care.
Features
– 12.1-inch LCD screen
– Modular parameter configuration
– Standard parameters include ECG, SPO2, TEMP, NIBP, RESP, and PR/HR
– Compatible with 3-lead and 5-lead ECG
– High precision in varied medical settings
Technical Specifications
| Model | YR02175 | |
| ECG | Lead mode | 5 Leads(RA,LA,LL,RL,V) |
| Connection method | I, II, III,AVR,AVL,AVF,V | |
| Lead Mode | 3 Leads (RA,LA,LL) | |
| Connection method | I, II,III | |
| Waveform | 1ch | |
| Gain | x250, x500, x1000, x2000 | |
| HR Range | Adult: 15~300bpm | |
| Neo/Ped | 15~350bpm | |
| Accuracy | ±1% or ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200(uVp-p) | |
| Differential input impedance | ≥5MΩ | |
| ST segment Monitoring Range | ||
| Measure Range | -2.0~+2.0mV | |
| Measure Accuracy | -0.8mV~+0.8mV | |
| Heart Rate | Measuring range | 20~300bpm |
| Accuracy | ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200UVp-p | |
| Respiration | Method | Impedance between R-F(RA-LL) |
| Differential Input Impedance | >2.0MΩ | |
| Measuring Impedance Range | 0.3~3.0 MΩ | |
| Base line Impedance Range | 200~4000Ω | |
| Bandwidth | 0.1~2.5Hz | |
| Resp. Rate | Adult: 2~120BrPM | |
| Neo/Ped | 0~150BrPM | |
| Resolution | 1 BrPM | |
| Accuracy | ±2 BrPM | |
| Alarm | 10~40S | |
| NIBP | Method | Oscillometric |
| Mode | Manual/Auto/STAT | |
| Measuring Interval in AUTO Mode | 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min) | |
| Measuring Period in STAT Mode | 5 Min | |
| Pulse Rate Range | 40~240bpm | |
| Alarm Type | SYS, DIA, MEAN | |
| Resolution | ||
| Pressure | 1mmHg | |
| Accuracy | Maximum Mean error: 5mmHg | |
| Maximum Standard deviation | 8mmHg | |
| SPO2 | Display | Number of SPO2,waveform of capacity,Pulse |
| Measuring range | 0~100% | |
| Resolution | 1% | |
| Accuracy | 60~100% (±2%) | |
| Alarm system | Audio-video alarm | |
| Pulse rate range | 0~300bpm | |
| TEMP | Channel | 2 |
| Measuring and Alarm Range | 0~50ºC | |
| Resolution | 0.1ºC | |
| Accuracy | 0.1ºC | |
| Actualization interval | about 1 Second | |
| Average Time Constant | <10 Second | |
