Description

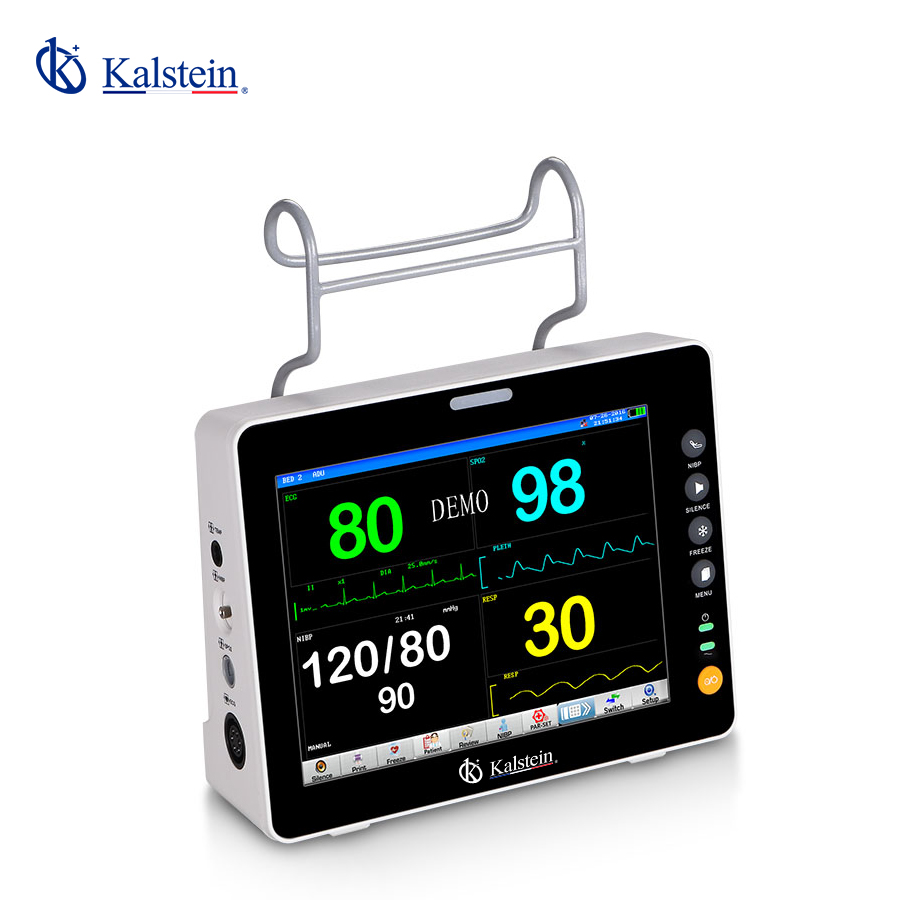

The Patient Monitors YR02170 // YR02171 // YR02172 are state-of-the-art devices engineered to deliver comprehensive patient monitoring with exceptional precision. Featuring a multi-channel display and a large font interface, these monitors ensure optimal readability in critical medical settings. They come equipped with advanced functionalities such as ST and arrhythmia analysis, drug dose calculations, and the innovative OxyCRG dynamic view display. Additionally, these monitors offer dependable apnea alarms for respiratory monitoring and a robust alarm review system. With their rechargeable battery options and support for both wired and wireless network integration, they are ideal for hospitals and clinics, addressing a wide range of patient care requirements with unmatched accuracy.
Market Price
The market for patient monitors like the YR02170 series can vary widely in terms of pricing. Factors such as specific features and where you choose to purchase can influence cost. For the most competitive and tailored pricing, be sure to request a quote through Kalstein Plus.
Frequently Asked Questions
Q: What are the connectivity options for these monitors?
A: These monitors support both wired and wireless network connections.
Q: Are the Patient Monitors YR02170 series battery-operated?
A: Yes, they come with rechargeable battery options and are compatible with AC/DC operation.
Advantages and Disadvantages
Advantages: The patient monitors offer high resolution and accuracy, advanced networking capabilities, and a reliable alarm system, enhancing patient safety.
Disadvantages: The extensive range of features may require additional training for optimal use.
Field Usage
The YR02170 series monitors are designed for real-time patient monitoring in hospitals and clinics. They cover an array of monitoring needs, from ECGs to vital signs and arrhythmia management, suitable for adult, pediatric, and neonatal care. Their cutting-edge features make them indispensable in critical care environments.
Recommendations
For optimal performance, it is advisable to regularly charge the batteries and keep the software updated for seamless network connectivity. Training staff on alarm functionalities and troubleshooting is crucial to maximize safety and effectiveness. For more detailed information on capabilities and integration, generate a quote on Kalstein Plus today to secure the best deals.
Features
- Multi-channel display
- Big font interface
- ST and arrhythmia analysis
- Drug dose calculation and titration table
- OxyCRG dynamic view display
- Respiration monitoring with apnea alarms
- Alarm review, arrhythmia review
- NIBP over pressure protection
- Plug-in rechargeable battery, AC/DC available
- Supporting wired or wireless network
Technical Specifications
| Model | YR02170 | YR02171 | YR02172 | |
| ECG | Lead mode | 5 Leads(RA,LA,LL,RL,V) | ||
| Connection method | I, II, III,AVR,AVL,AVF,V | |||
| Lead Mode | 3 Leads (RA,LA,LL) | |||
| Connection method | I, II,III | |||
| Waveform | 1ch | |||
| Gain | x250, x500, x1000, x2000 | |||
| HR Range | Adult: 15~300bpm | |||
| Neo/Ped | 15~350bpm | |||
| Accuracy | ±1% or ±1bpm | |||
| Resolution | 1bpm | |||
| Sensitivity | >200(uVp-p) | |||
| Differential input impedance | ≥5MΩ | |||
| ST segment Monitoring Range | ||||
| Measure Range | -2.0~+2.0mV | |||
| Measure Accuracy | -0.8mV~+0.8mV | |||
| Heart Rate | Measuring range | 0~350bpm | 20~300bpm | |
| Accuracy | ±1bpm | |||
| Resolution | 1bpm | |||
| Sensitivity | >200UVp-p | |||
| Respiration | Method | Impedance between R-F(RA-LL) | ||
| Differential Input Impedance | >2.5MΩ | |||
| Measuring Impedance Range | 0.3~3.0 MΩ | |||
| Base line Impedance Range | 200~4000Ω | |||
| Bandwidth | 0.1~2.5Hz | |||
| Resp. Rate | Adult: 2~120BrPM | |||
| Neo/Ped | 2~150BrPM | 0~150BrPM | ||
| Resolution | 1 BrPM | |||
| Accuracy | ±2 BrPM | |||
| Alarm | 10~40S | |||
| NIBP | Method | Oscillometric | ||
| Mode | Manual/Auto/STAT | |||
| Measuring Interval in AUTO Mode | 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min) | |||
| Measuring Period in STAT Mode | 5 Min | |||
| Pulse Rate Range | 40~240bpm | |||
| Alarm Type | SYS, DIA, MEAN | |||
| Resolution | ||||
| Pressure | 1mmHg | |||
| Accuracy | Maximum Mean error: 5mmHg | |||
| Maximum Standard deviation | 8mmHg | |||
| SPO2 | Display | Number of SPO2,waveform of capacity,Pulse | ||
| Measuring range | 0~100% | |||
| Resolution | 1% | |||
| Accuracy | 70~100% (±2%) | |||
| Alarm system | Audio-video alarm | |||
| Pulse rate range | 0~300bpm | |||
| TEMP | Channel | 2 | ||
| Measuring and Alarm Range | 0~50ºC | |||
| Resolution | 0.1ºC | |||
| Accuracy | 0.1ºC | |||
| Actualization interval | about 1 Second. | |||
| Average Time Constant | <10 Second. | |||
