Description

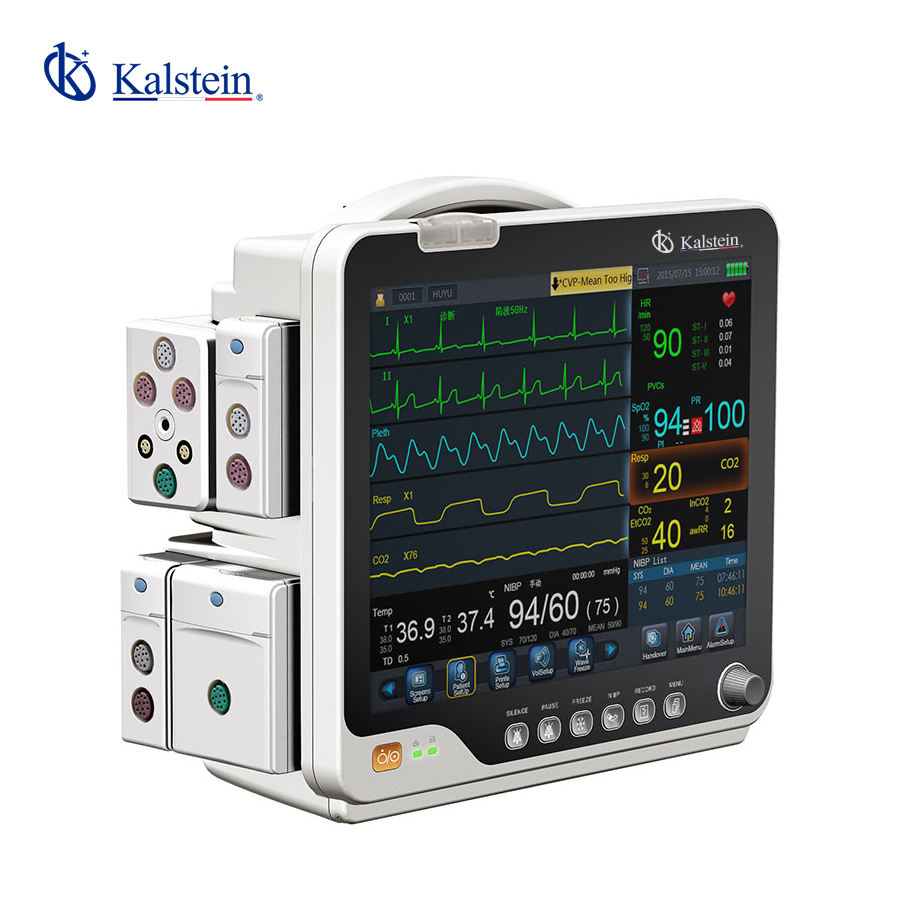

The Patient Monitor YR02176 is an exceptional tool designed to cater to the nuanced needs of critical healthcare settings such as Operating Theaters (OT) and Intensive Care Units (ICU). Featuring a 15-inch LCD display and modular parameter configuration, this advanced monitoring system delivers comprehensive, customizable patient data. Its standard capabilities include ECG, SPO2, TEMP, NIBP, RESP, and PR/HR, with additional options available for enhanced monitoring like Masimo/Nellcor SpO2, Dual-IBP, and EtCO2. This flexibility makes the YR02176 an indispensable asset for medical professionals aiming to provide optimal patient safety and care.
Market Price
In the realm of healthcare technology, understanding the financial commitment associated with patient monitors is crucial. Devices such as the Patient Monitor YR02176 embody cutting-edge technology and reliable features that justify their presence in the market. For those seeking an investment that matches unparalleled sophistication and efficacy in patient monitoring, requesting a detailed quote through the Kalstein Plus platform is a wise step forward.
Frequently Asked Questions
Which facilities benefit most from the Patient Monitor YR02176?
This monitor is especially beneficial in high-dependency environments, operating theaters, and ICUs where continuous patient observation is critical.
Is the device portable?
Yes, the YR02176 offers flexible installation options such as a trolley or wall mount, catering to various settings within hospital infrastructures.
Advantages and Disadvantages
One of the primary advantages of the YR02176 is its modular design, allowing tailored configurations to meet specific clinical requirements. This ensures accurate monitoring of vital signs, crucial for patient safety. However, due to its advanced capabilities, some might find the initial setup complex. Proper training is suggested to maximize its features and benefits effectively.
Field Application
The Patient Monitor YR02176 is a pivotal instrument in critical care, providing real-time detailed insights into patient vitals. This continuous data stream empowers medical teams to swiftly make informed decisions, significantly enhancing patient care quality. Its resilience and versatile feature array render it indispensable in high-stakes environments.
Recommendations
For optimal performance of the YR02176, regular maintenance and precise calibration are recommended. Given its multiple customization options, initial staff training is advantageous in ensuring efficient daily use. Always review the manual for detailed setup instructions. To explore further and request a precise quote, visit the Kalstein Plus platform.
Features
- 15-inch LCD screen
- Modular parameter configuration
- Standard monitoring: ECG, SPO2, TEMP, NIBP, RESP, PR/HR
- Options for advanced monitoring capabilities
- Flexible mounting options
- High-resolution displays
Technical Specifications
| Model | YR02176 | |
|
ECG
|
Lead mode | 5 Leads(RA,LA,LL,RL,V) |
| Connection method | I, II, III,AVR,AVL,AVF,V | |
| Lead Mode | 3 Leads (RA,LA,LL) | |
| Connection method | I, II,III | |
| Waveform | 1ch | |
| Gain | x250, x500, x1000, x2000 | |
| HR Range | Adult: 15~300bpm | |
| Neo/Ped | 15~350bpm | |
| Accuracy | ±1% or ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200(uVp-p) | |
| Differential input impedance | ≥5MΩ | |
| ST segment Monitoring Range | ||
| Measure Range | -2.0~+2.0mV | |
| Measure Accuracy | -0.8mV~+0.8mV | |
|
Heart Rate
|
Measuring range | 20~300bpm |
| Accuracy | ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200UVp-p | |
|
Respiration
|
Method | Impedance between R-F(RA-LL) |
| Differential Input Impedance | >2.5MΩ | |
| Measuring Impedance Range | 0.3~3.0 MΩ | |
| Base line Impedance Range | 200~4000Ω | |
| Bandwidth | 0.1~2.5Hz | |
| Respiration Rate | Adult: 2~120BrPM | |
| Neo/Ped | 0~150BrPM | |
| Resolution | 1 BrPM | |
| Accuracy | ±2 BrPM | |
| Alarm | 10~40S | |
|
NIBP
|
Method | Oscillometric |
| Mode | Manual/Auto/STAT | |
| Measuring Interval in AUTO Mode | 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min) | |
| Measuring Period in STAT Mode | 5 Min | |
| Pulse Rate Range | 40~240bpm | |
| Alarm Type | SYS, DIA, MEAN | |
| Resolution | ||
| Pressure | 1mmHg | |
| Accuracy | Maximum Mean error: 5mmHg | |
| Maximum Standard deviation | 8mmHg | |
|
SPO2
|
Display | Number of SPO2,waveform of capacity,Pulse |
| Measuring range | 0~100% | |
| Resolution | 1% | |
| Accuracy | 70~100% (±2%) | |
| Alarm system | Audio-video alarm | |
| Pulse rate range | 0~300bpm | |
|
TEMP
|
Channel | 2 |
| Measuring and Alarm Range | 0~50ºC | |
| Resolution | 0.1ºC | |
| Accuracy | 0.1ºC | |
| Actualization interval | about 1 Second. | |
| Average Time Constant | <10 Second. | |
