Description

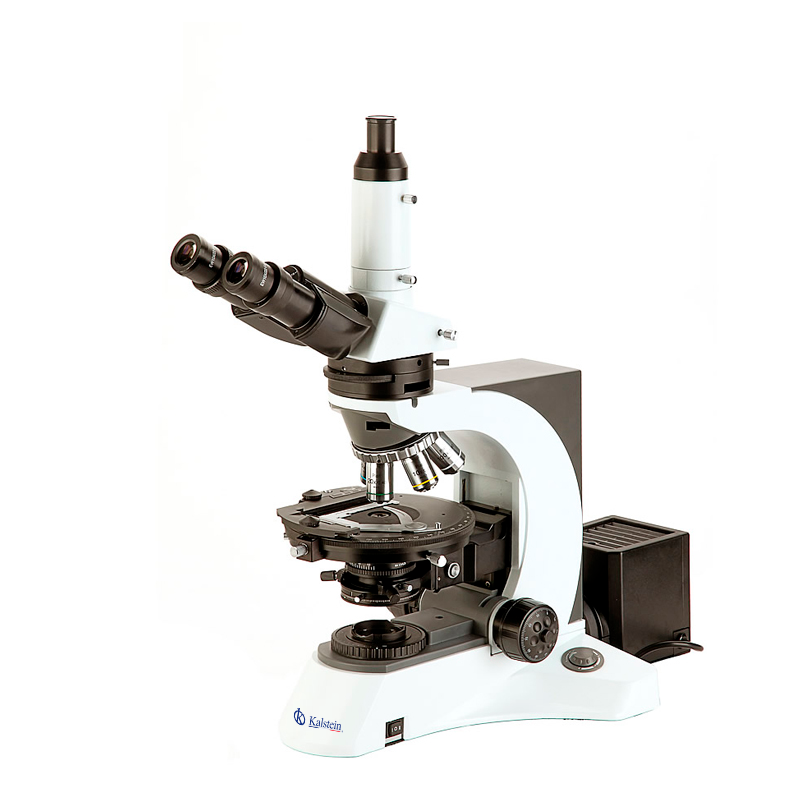

The Polarizing Microscope YR0261 is a state-of-the-art instrument meticulously crafted for precision in optical analysis. Featuring a quintuple nosepiece and strain-free infinity plan objectives ranging from 4x to 100x magnification, this microscope is designed to deliver accurate and detailed observations. Its 170mm round stage is center adjustable, complemented by an analyzer unit with a Bertrand lens and optical compensators, ideal for both orthoscopic and conoscopic views. Enhanced by a 24V100W halogen lamp with adjustable brightness, the microscope ensures optimal illumination across various samples. A formidable choice for professionals in laboratory and research settings, the Polarizing Microscope YR0261 guarantees efficiency and precision.
Market Price
The pricing of polarizing microscopes is influenced by several factors, such as magnification power and additional functionalities. While the market offers a wide price range, the Polarizing Microscope YR0261 is competitively positioned thanks to its advanced features and dependable performance.
Frequently Asked Questions
Q: What magnification does the Polarizing Microscope YR0261 offer?
A: It includes strain-free infinity plan objectives with magnifications of 4x, 10x, 40x, and 100x.
Q: Is the brightness adjustable?
A: Yes, it features adjustable brightness via a 24V100W halogen lamp.
Q: Can it perform both orthoscopic and conoscopic observations?
A: Indeed, the design allows for seamless transitions between orthoscopic and conoscopic observations.
Advantages and Disadvantages
Advantages: Precision optical engineering, versatile observation capabilities, adjustable illumination, robust and reliable construction.
Disadvantages: The cost might be a factor for budget-oriented buyers, and careful handling and regular maintenance are essential.
Use in the Field
The Polarizing Microscope YR0261 is predominantly employed in research labs, geology, and material sciences for analyzing sample characteristics. The polarized lighting effectively highlights anisotropic substances, making it indispensable for detailed structural and textural studies.
Recommendations
To harness the full potential of the Polarizing Microscope YR0261, regular maintenance is crucial. Ensure that lenses are cleaned with suitable solutions, and adhere to the manufacturer’s calibration guidelines. For a hassle-free purchasing experience, consider using the Kalstein Plus platform to request a quote or explore additional microscopy options effortlessly.
Features
- Quintuple Nosepiece Center Adjustable
- Strain-free Infinity Plan Objectives 4x10x40x100x
- Round Stage Dia.170mm Center Adjustable
- Analyzer Unit With Bertrand Lens, λ Slip, 1/4λ Slip, Quartz Wedge
- Transmit Halogen 24V100W Brightness Adjustable
Technical Specifications
| Model | YR0261 | |
| Objective | Strainfree Infinity Plan Achromatic Objective 20x/0.4/∞/- W.D. 5.1mm | YR0261-op1 |
| Stage | Attachable Stage, Moving Range 30*40mm | YR0261-op1 |
| Filter | Netural Filter ND25 | YR0261-op1 |
| Netural Filter ND26 | YR0261-op1 | |
| Adapter | Photo Adapter | YR0261-op1 |
| C-Mount 1.0x | YR0261-op1 | |
| Items | YR0261 | |
| Optical System | Infinity Optical System | |

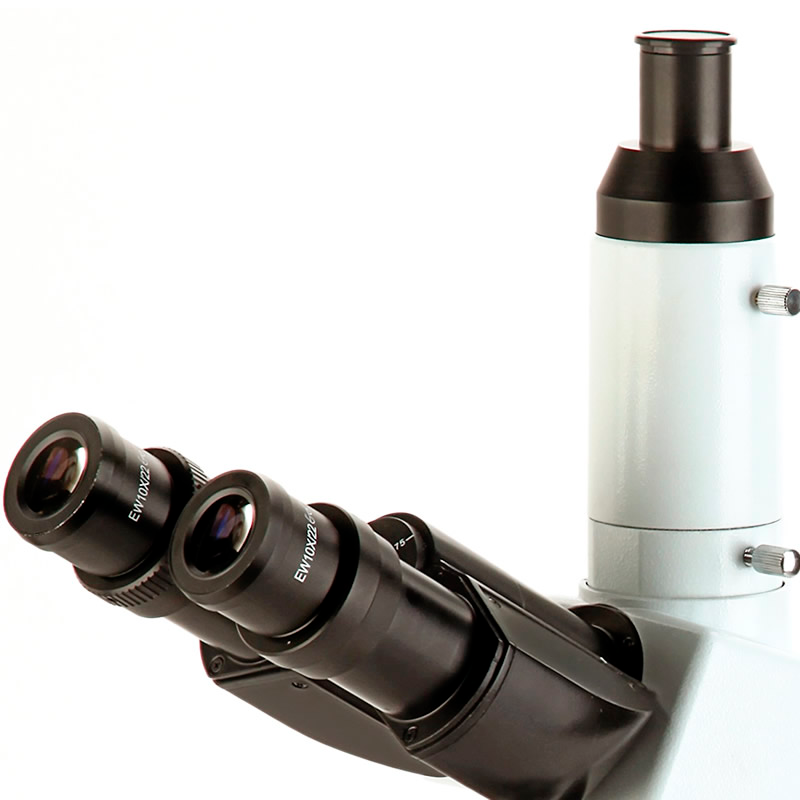

| Head | Seidentopf Trinocular Head, 30° Inclined, Interpupillary 48~75mm, Diopter Adjustable | |
| Eyepiece | Plan Eyepiece EW10x/22mm, Eyepiece Tube Dia.30mm | |
| Plan Eyepiece With Scale of Crosshair | ||
| Plan Eyepiece With Cross | ||
| Plan Eyepiece With Gridding | ||

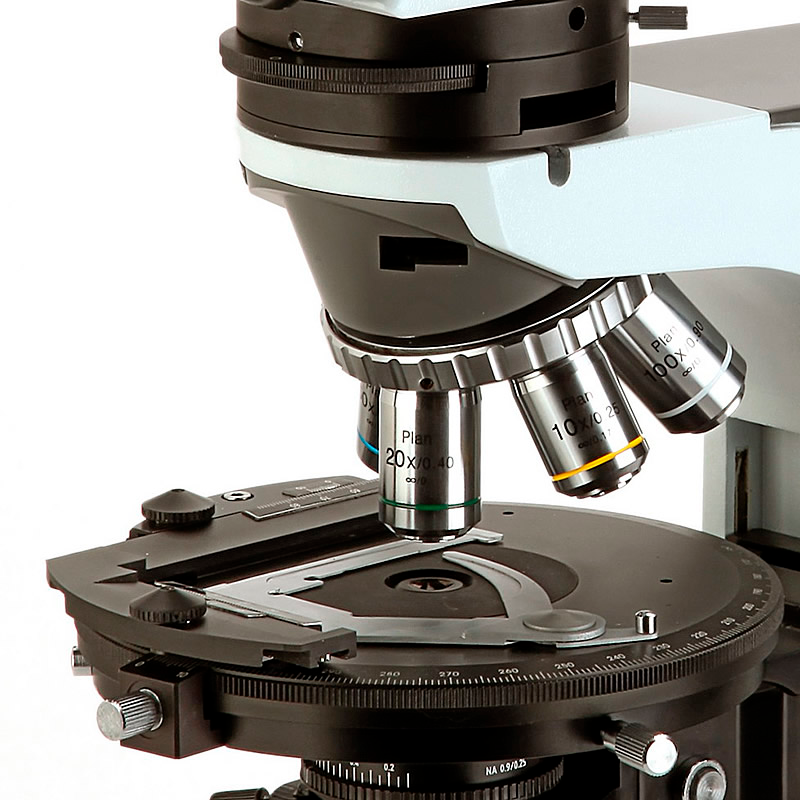

| Objective | Strainfree Infinity Plan Achromatic Objective | |
| 4x/0.10/∞/- W.D.17.3mm | ||
| 10x/0.25/∞/0.17 W.D.10mm | ||
| 40x/0.65/∞/0.17 W.D.0.54mm | ||
| 100x/1.25/∞/0.17 W.D.0.13mm | ||
| Nosepiece | Backward Quintuple Nosepiece, Center Adjustable | |
| Analyzer | 360° Dial Rotation Analyzer, Minimum Scale Reading 0.1° (Vernial Scale) | |
| Switch Between Orthoscopic And Conoscopic Observation | ||
| Bertrand Lens Postion Adjustable | ||
| Optical Compensator: λ Slip (First Class Red), 1/4λ Slip, Quartz Wedge | ||
| Working Stage | Polarizing Rotatable Stage, Dia.170mm, Center Adjustable | |
| 360° Scale, Minimum Division 1° | ||
| Minimum Reading 6′ By Means of Vernial Scale | ||
| 45° Click Stop Knob | ||
| Condenser | Strainfree Swing Condenser N.A.0.95/0.25 | |

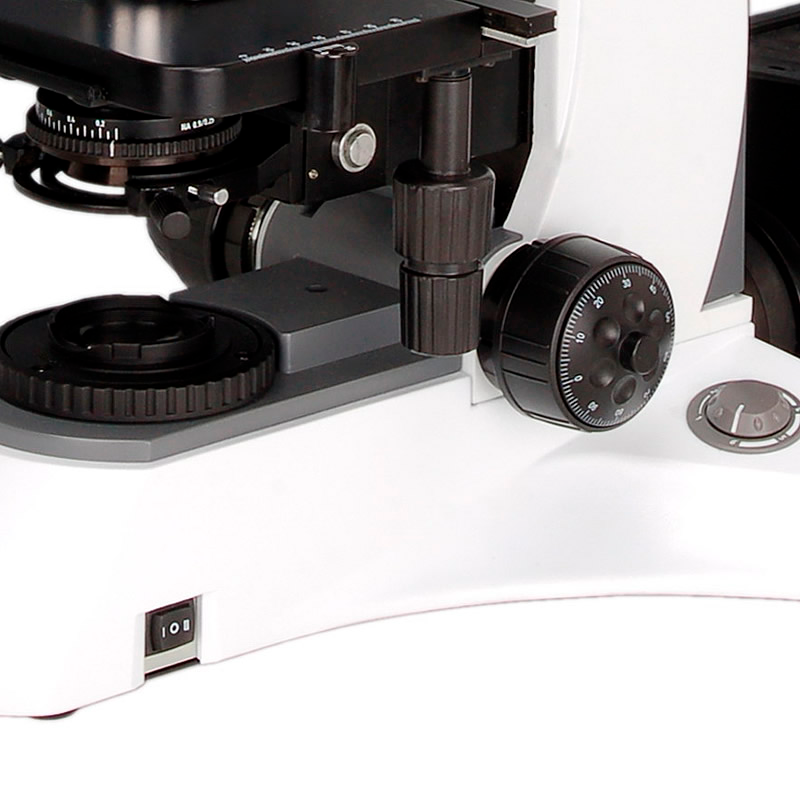

| Focusing | Coaxial Coarse & Fine Adjustment, Focusing Range 32mm, Fine Division 0.001mm, Coarse Stroke 37.7mm Per Rotation, Fine Stroke 0.1mm Per Rotation | |
| Polarizer | 360° Rotatable, 0° Position Adjustable | |
| Filter | Blue Filter, Dia.45mm | |
| Illumination | Transmit Illumination Halogen Lamp 24V100W, Brightness Adjustable | |
