Description

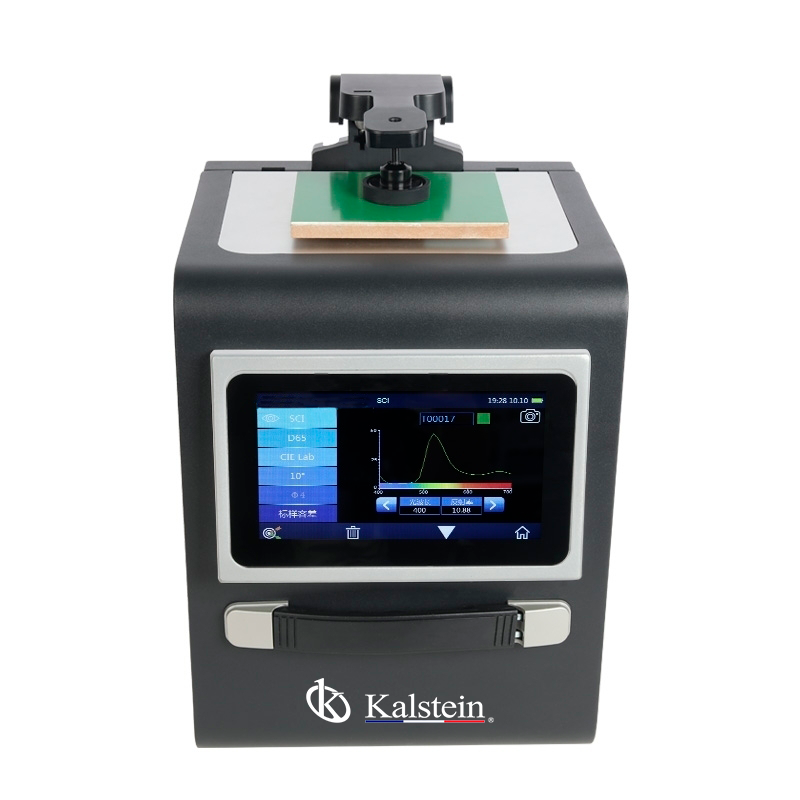

The Portable Desktop Spectrophotometer YR05486 offers an advanced color measurement solution for industries like textiles, ceramics, and electronics, focusing on precise color accuracy in both laboratory and production settings. Equipped with dual-array 40-group silicon photodiode sensors and interchangeable apertures of Φ4 mm and Φ8 mm, this device ensures exceptional adaptability and accuracy, with ΔEab values well within precise tolerance levels. The inclusion of an integrated camera for precise sample positioning and a user-friendly HD 7-inch touchscreen enhances usability, making it an essential tool for any setting requiring meticulous color analysis and control.
Market Price
Positioned competitively, the YR05486 offers an attractive value proposition for businesses needing superior color control solutions. The price may vary depending on the configuration and optional accessories like micro printers and rotating stands. Investing in this spectrophotometer means committing to improving precision in your production line. Visit Kalstein Plus to obtain a personalized quote and discover how this device can revolutionize your color quality control process.
Frequently Asked Questions
- What industries benefit from the YR05486?
This model is ideal for fields requiring rigorous color accuracy, such as textiles, ceramics, and plastics. - Is it compatible with PCs?
Yes, the YR05486 can seamlessly connect with PCs using its sophisticated color management software, facilitating data handling and analysis. - What is its storage capacity?
It can store 1,000 standard measurements and 30,000 sample readings, supporting comprehensive data documentation.
Advantages and Disadvantages
Among its many advantages, the YR05486 boasts high precision, portability, and the capacity to handle large and fluorescent samples. It supports seamless data transfer through USB and Bluetooth 5.0 connectivity. However, due to its primary design focus on laboratory applications, it might not be practical for smaller work environments or projects needing less precision.
Field Applications
The YR05486 is primarily utilized in quality control labs where pinpoint color assessment is critical. Its ability to operate in various orientations (horizontal and vertical) and to measure extensive areas proves invaluable for maintaining color consistency across the production line. The device’s rotating architecture and rapid SCI/SCE measurement capability (approximately 3.2 seconds) make it highly efficient within industrial environments.
Recommendations
To ensure optimal performance, regular calibration and maintaining a clean environment are recommended for the YR05486. Its full-spectrum light source combined with ultraviolet capabilities allows for precise measurements even in demanding conditions. Request a personalized quote or use the Kalstein Plus platform to instantly generate a budget and see how the Portable Desktop Spectrophotometer YR05486 can enhance color control across your production stages, ensuring your products’ visual quality meets the highest standards.
Features
- Portable design suitable for field and lab use.
- Dual-array silicon photodiode sensor for enhanced accuracy.
- Interchangeable apertures for flexible sample measurement.
- Integrated camera for precise positioning and control.
- Comprehensive connectivity with USB and Bluetooth 5.0.
Technical Specifications
| Model | YR05486 |
| Optical Geometry | D/8(diffused illumination, 8-degree viewing angle) |
| SCI (specular component included)/SCE (specular component excluded) ; Include UV / excluded UV light source | |
| Comply to CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 | |
| Characteristic | Φ8/4mm apertures,free switch,good for horizontal or vertical measurement, wider adaptability; |
| Accurate measurement, can be used for laboratory color accurate analysis and transmission; | |
| Suitable for precise color measurement and quality control in textile and garment printing and dyeing, plastic electronics, ceramics and other industries; It can be used for fluorescence sample measurement. | |
| Integrating Sphere Size | Φ40mm |
| Light Source | Combined full spectrum LED light source, UV light source |
| Spectrophotometric Mode | Flat Grating |
| Sensor | Silicon photodiode array (double row 40 groups) |
| Wavelength Range | 400~700nm |
| Wavelength Interval | 10nm |
| Semiband Width | 10nm |
| Measured Reflectance Range | 0~200% |
| Measuring Aperture | MAV:Φ8mm/Φ10mm;SAV:Φ4mm/Φ5mm |
| Specular Component | SCI/SCE |
| Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99 Munsell(C/2) |
| Color Difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),
ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter) |
| Other Colorimetric Index | WI(ASTM E313,CIE/ISO,AATCC,Hunter)， |
| YI(ASTM D1925,ASTM 313), | |
| Metamerism Index MI, | |
| Staining Fastness, Color Fastness, Color Strength, Opacity | |
| 8° Glossiness,555 tone classification | |
| Observer Angle | 2°/10° |
| Illuminant | D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,
F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30) |
| Displayed Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset |
| Measuring Time | About 1.5s (Measure SCI & SCE about 3.2s) |
| Repeatability | Chromaticity value: MAV/SCI, within ΔE*ab 0.02 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) |
| Inter-instrument Error | MAV/SCI, Within ΔE*ab 0.15 |
| (Average for 12 BCRA Series II color tiles) | |
| Measurement Mode | Single Measurement, Average Measurement(2-99times) |
| Locating Method | Camera Locating |
| Dimension | L*W*H=370X240X260mm |
| Weight | About 7.8kg |
| Battery | AC 24V, 3A Power adapter power supply |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display | 7-inch TFT color LCD, Capacitive Touch Screen |
| Data Port | USB, Bluetooth ®5.0, trigger switch interface |
| Data Storage | Standard 1000 Pcs, Sample 30000 Pcs |
| Language | Simplified Chinese, English, Traditional Chinese |
| Operating Environment | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m |
| Storage Environment | -20~50℃, 0~85%RH (no condensing) |
| Standard Accessory | Power Adapter, USB Cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity, 8mm Aperture, 4mm Aperture |
| Optional Accessory | Micro Printer, Foot Switch, Rotating Bracket |
| Notes | Technical parameters are only for reference, subject to the actual sale of the product |
