Description

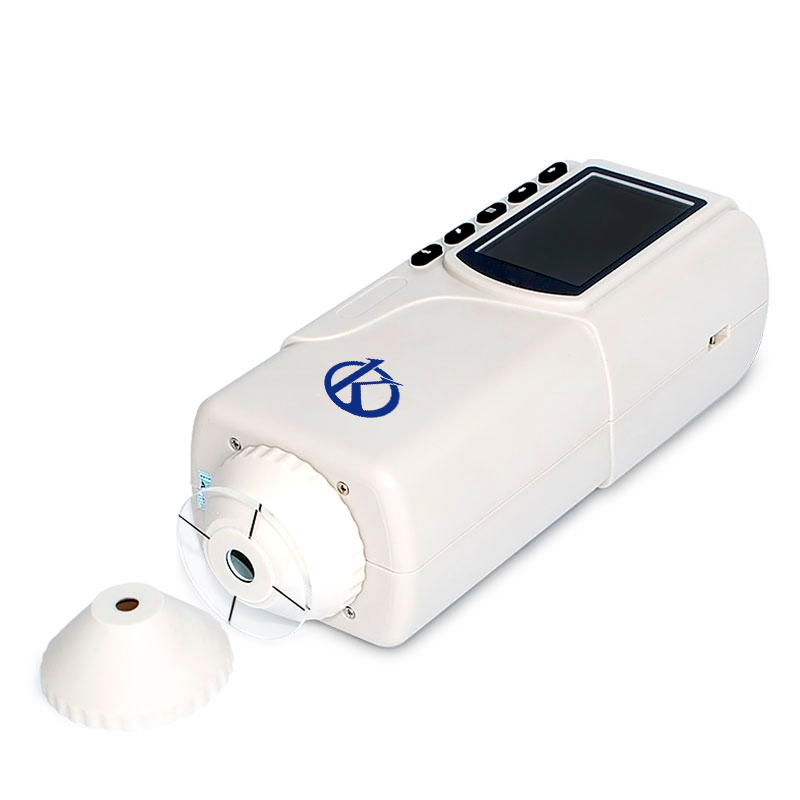

The Precision Colorimeter YR05513 is an essential tool for professionals in diverse industries, including plastics, electronics, textiles, and food. Offering the perfect blend of accuracy and affordability, this advanced device, engineered by the Kalstein team, features a dual aperture system (Φ8mm and Φ4mm tips) for diverse sample measurement within the CIE LAB color space. With built-in calibration settings, a rechargeable Li-ion battery, and a user-friendly handheld design, it ensures both precision and ease of use in color analysis tasks.
Market Price
The Precision Colorimeter YR05513 stands out for its cost-effective approach. In comparison to similar high-precision colorimeters, which can span a wide price range, this device offers remarkable value without compromising on functionality or performance.
Frequently Asked Questions
Can the YR05513 be used with concave samples?
Yes, the dual aperture system facilitates the measuring of concave samples as well as large flat surfaces.
What is the battery life of the YR05513?
It includes a rechargeable lithium-ion battery, ensuring extended usage without the need for frequent recharges.
Advantages and Disadvantages
Advantages:
- High precision with built-in calibration settings.
- User-friendly handheld design.
- Cost-efficient with dual apertures for versatile sample measurement.
- Rechargeable battery reducing additional expenses.
Disadvantages:
- Lacks PC software for enhanced data analysis.
- May not meet all niche industry needs without optional accessories.
Usage in the Field
The Precision Colorimeter YR05513 is ideal for quality control in laboratories, factories, and research institutes. By swiftly measuring and displaying chromaticity values and ΔE for color differences, it ensures product consistency, particularly in textiles, garments, and printed materials.
Recommendations
To fully benefit from the YR05513, regular calibration using the built-in options is advised. Ensure the device remains charged and stored within specified conditions for longevity. Consider optional accessories like a micro printer to enhance its functionality.
Features
- CIE LAB color space analysis.
- Repeatability of ΔE*ab 0.03 for precise measurement.
- Dual aperture design for versatile use.
- Rechargeable 3.7V lithium-ion battery for extended operation.
- Portable and ergonomic design for user convenience.
Technical Specifications
| Model | YR05513 |
| Illuminating/Viewing Geometry | 8/d(8°illumination angle/diffuse viewing); Conforms to CIE No.15,GB/T 3978. |
| Illumination | LED white light |
| Detector | Silicon photoelectric diode |
| Measuring Aperture | Φ8mm flat aperture; Φ4mm tip aperture |
| Color Space | CIE LAB |
| Color Difference Formula | ΔE*ab |
| Observer Angle | CIE 10° |
| Light Source | D65 |
| Displayed Data | Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset |
| Measuring Time | 1.0s |
| Repeatability | Standard deviation within ΔE*ab 0.03 (Average of 30 measurements of standard white plate) |
| Errors Between Each Equipment | Within ΔE*ab 0.4 |
| (Average for 12 BCRA Series II color tiles) | |
| Dimension | 205×67×80 mm |
| Weight | 500g |
| Power source | Rechargeable lithium-ion battery 3.7V@3200mAh |
| Lamp Life | TFT 2.8 inch |
| Interface | USB |
| Data Memory | 100pcs standards 10000pcs samples |
| Operating Environment | 0~40°C(32~104°F) |
| Storage Environment | -20~50°C(-4~122°F) |
| PC Software | No |
| Standard Accessory | Power Adapter, User Guide, Wristbands, Φ8mm flat aperture; Φ4mm tip aperture. |
| Optional Accessory | Micro Printer, powder test box |
| Notes: The specifications are subject to change without notice. | |
