Description

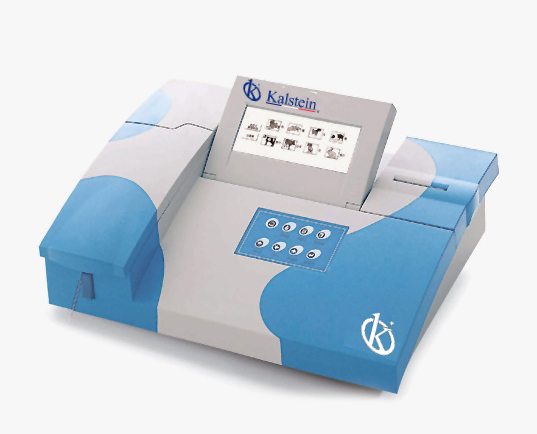

The Veterinary Chemistry Analyzer YR06077 is a cutting-edge diagnostic instrument crafted to address the diverse demands of veterinary professionals. Capable of supporting up to 12 animal types, including 8 fixed and 4 user-defined, it represents a versatile solution in veterinary diagnostics. Outfitted with a bichromatic optic system and seven wavelengths, this analyzer promises precision and dependability. With 34 common tests preloaded and room for 20 additional custom tests, it meets a wide range of diagnostic needs. The device comes with a user-friendly interface featuring USB compatibility for keyboard and mouse, while updates are easily managed via an SD card port. Its pre-programmed kinetic and endpoint assays, coupled with a real-time reaction curve display, optimize efficiency and accuracy in test results.
Market Price
The Veterinary Chemistry Analyzer YR06077 is strategically priced to be competitive in the market, offering veterinary clinics an attractive opportunity to enhance diagnostic capabilities without exceeding budget constraints. We encourage interested professionals to use our Kalstein Plus platform for a personalized quote tailored to their specific needs.
Frequently Asked Questions
Q: Can the analyzer be used for all types of animals?
A: The analyzer supports up to 12 types of animals, including 8 fixed types like cats and dogs, with 4 additional types that can be defined by the user.
Q: How do I update the system?
A: System updates can be performed easily through the SD card port, ensuring your analyzer is always up-to-date with the latest capabilities.
Advantages and Disadvantages
The Veterinary Chemistry Analyzer YR06077 offers numerous advantages, such as flexible animal testing capability, a comprehensive test range, and user-friendliness with USB and SD card interfaces. Its main disadvantage could be the initial investment cost, which may be higher than simpler models, but it is justified by the enhanced functionalities and efficiencies it provides.
Field Use
In practical scenarios, the Veterinary Chemistry Analyzer YR06077 is indispensable in providing quick and precise results. Whether in a clinic or a field setting, its compact size and robust features make it an excellent choice for professionals who need reliable, on-site diagnostic capabilities.
Recommendations
To maximize the performance and lifespan of your Veterinary Chemistry Analyzer YR06077, ensure regular maintenance is performed, including cleaning the optical system and updating the software regularly. Utilize the device in environments with stable power supply settings and leverage the multi-form result outputs for comprehensive reporting.
Features
- Support for up to 12 types of animals: 8 fixed, 4 customizable
- 34 common tests predefined, 20 customizable
- Bichromatic optic system with 7 wavelengths
- USB and SD card support for input and system updates
- Real-time reaction curve display
- Quality control and automatic lamp sleeping
- Multi-form result outputs, including comprehensive animal reports
Technical Specifications
| Model | YR06077 |
| Principle: | Absorbance |
| Photometric Range: | -0.500-3.500Abs |
| Resolution: | 0.001Abs(displayed), 0.0001Abs(calculated) |
| Light Source: | Halogen lamp |
| Wavelengths: | 340,405,500,546,578,620,670nm, |
| 1 more filter optional | |
| Wavelength Accuracy: | ±2nm |
| Band Width: | 10nm |
| Carryover: | <1% |
| Memory: | 200 test parameters, up to 3000 sample results |
| Interface: | RS-232,USB,SD card interface |
| Flow Cell: | 25ul Metal-quartz flow cell |
| Cuvette Mode: | 12.5mm*12.5mm cuvette optional |
| Temperature Control: | 25 C, 30C,37 C;±0.5 C and ambient temperature |
| Display: | 7″ color LCD(640*240 discernibility, 256 colors) |
| Input: | USB mouse and external keyboard |
| Output: | Build-in printer or external printer(optional) |
| Dimension L *W*H(mm): | 460*330*190 |
| Power Supply: | AC 110V/220V. 50Hz/60Hz |
