Description

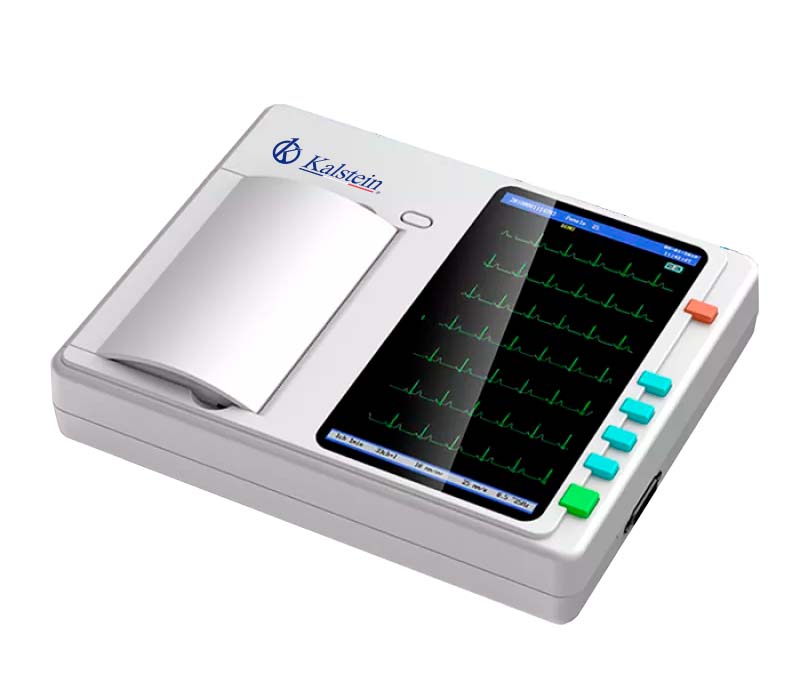

The YR05159 Medical ECG Machine 12 Derivations 6 Channel stands as a state-of-the-art device engineered for precise cardiac monitoring. Capable of collecting 12-lead ECG signals concurrently, this 6-channel ECG machine provides comprehensive real-time insights crucial for assessing heart conditions. Its intuitive 7-inch touch screen enhances usability, facilitating thorough ECG analysis. With a durable design, it’s suited for identifying abnormal heart rhythms and evaluating chest pain causes, making it indispensable for hospital environments and private medical practices.
Market Price
The price of ECG machines varies widely, influenced by features, brand, and specifications. The YR05159 is positioned within the high-quality segment, offering exceptional performance and reliability. This makes it a valuable investment for healthcare professionals seeking trustworthy diagnostic equipment.
Frequently Asked Questions
What does a 6-channel ECG machine mean?
A 6-channel ECG machine is capable of recording and displaying six ECG leads simultaneously, giving a detailed representation of the heart’s electrical activity.
Is the YR05159 ECG machine suitable for home use?
While the YR05159 is primarily crafted for clinical and hospital applications, trained individuals can safely use it in home-care settings with adequate precautions.
Advantages and Disadvantages
Advantages:
The YR05159 obtains simultaneous 12-lead ECG signal collection, features defibrillator protection, and a large touchscreen, which ensures detailed and secure patient analysis.
Disadvantages:
Its professional-grade design might not be ideal for untrained individuals due to the technical expertise required.
Product Use in the Field
The YR05159 ECG machine is tailored for use in hospitals and clinics, pivotal for patient monitoring and diagnosing heart conditions. Its portability allows it to be used efficiently in emergency scenarios, providing timely and precise readings under critical circumstances.
Recommendations
To optimize the lifespan and performance of the YR05159, regular maintenance and calibration are advisable. Proper training for users to interpret ECG results accurately is also recommended. For more detailed information or to obtain a quote, explore our Kalstein Plus platform and experience an effortless quoting process.
Key Features
– 6-channel ECG machine with 12-lead simultaneous collection
– 7″ graphic LCD touch screen
– Offers both automatic and manual recording modes
– Integrated thermal printing system
– Equipped with defibrillator protection and high input impedance
Technical Specifications
| Model | YR05159 |
| Screen | 7 ″ touch screen |
| Guide | 12 standard leads |
| Prospect Acquisition | Synchronously 12 leads |
| Input Circuit | Floating; Defibrillator protection circuit |
| Input Impedance | ≥50MΩ |
| Input Circuit Current | ≤0.0.05μA |
| Recording Mode | Automatic: 3CH × 4 + 1R, 3CH × 4, 3CHx2 + 2CHx3, 3CHx2 + 2CHx3 + 1R, 6CHX2; Manual: 3CH, 2CH, 3CH + 1R, 2CH + 1R; Rhythm: any selectable lead. |
| Filter | EMG filter: 25Hz / 30Hz / 40Hz / 75Hz / 100Hz / 150Hz DFT filter: 0.05Hz / 0.15Hz AC filter: 50Hz / 60Hz |
| CMRR | > 100dB |
| Patient Current Leak | <10μA |
| Input Circuit Current | <0.05 µA |
| Frequent Response | 0.05Hz ~ 150Hz (-3dB) |
| Sensitivity | 2.5mm / mV, 5mm / mV, 10mm / mV, 20mm / mV |
| Anti-Baseline Drift | Automatic |
| Constant Time | ≥3.2s |
| Noise Level | <15μVp-p |
| Paper Speed | 12.5mm / s, 25mm / s, 50mm / s |
| Recording Mode | Thermal printing system |
| Paper Specification | Sun-7031: 80mm x 20m paper roll Sun-7062: 120mm x 20m paper roll |
| LCD Screen | 7 ″ graphic LCD |
| Safety Rating | IEC60601-1 class I, type CF |
| Power Supply | AC: 100 ~ 240V, 50 / 60Hz, 30VA ~ 100VA |
| Fuse | AC220V ± 10% 2 * Φ5 × 20mm, T2A / 250V AC time delay |
